为DecisionTreeClassifier绘制多类ROC曲线

Question

为DecisionTreeClassifier绘制多类ROC曲线

5

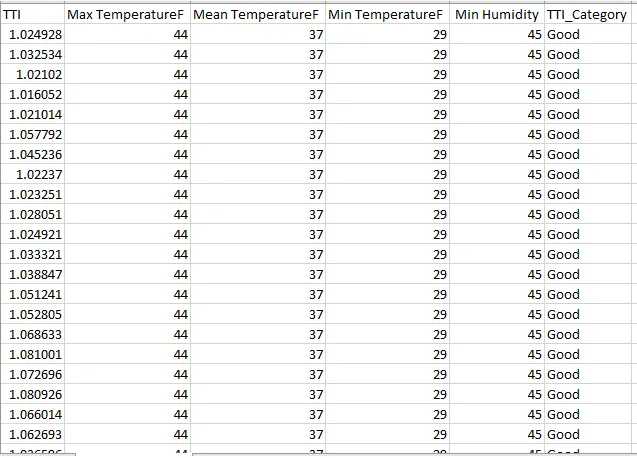

我尝试使用除了文档中提供的svm.SVC之外的分类器来绘制ROC曲线。我的代码在svm.SVC上运行良好；但是，当我切换到KNeighborsClassifier、MultinomialNB和DecisionTreeClassifier时，系统一直告诉我check_consistent_length(y_true, y_score)和Found input variables with inconsistent numbers of samples: [26632, 53264]。我的CSV文件看起来像这样。以下是我的代码：

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from itertools import cycle
import sys
from sklearn import svm, datasets
from sklearn.metrics import roc_curve, auc
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import label_binarize
from sklearn.multiclass import OneVsRestClassifier
from scipy import interp
from sklearn.neighbors import KNeighborsClassifier
from sklearn.naive_bayes import MultinomialNB
from sklearn.tree import DecisionTreeClassifier
# Import some data to play with
df = pd.read_csv("E:\\autodesk\\Hourly and weather categorized2.csv")
X =df[['TTI','Max TemperatureF','Mean TemperatureF','Min TemperatureF',' Min Humidity']].values
y = df['TTI_Category'].as_matrix()
y=y.reshape(-1,1)
# Binarize the output
y = label_binarize(y, classes=['Good','Bad'])
n_classes = y.shape[1]

# shuffle and split training and test sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.5,
                                                    random_state=0)

# Learn to predict each class against the other
classifier = OneVsRestClassifier(DecisionTreeClassifier(random_state=0))
y_score = classifier.fit(X_train, y_train).predict_proba(X_test)

# Compute ROC curve and ROC area for each class
fpr = dict()
tpr = dict()

roc_auc = dict()
for i in range(n_classes):
    fpr[i], tpr[i], _ = roc_curve(y_test[:, i], y_score[:, i])
    roc_auc[i] = auc(fpr[i], tpr[i])

# Compute micro-average ROC curve and ROC area
fpr["micro"], tpr["micro"], _ = roc_curve(y_test.ravel(), y_score.ravel())
roc_auc["micro"] = auc(fpr["micro"], tpr["micro"])
plt.figure()
lw = 1
plt.plot(fpr[0], tpr[0], color='darkorange', lw=lw, label='ROC curve (area = %0.2f)' % roc_auc[0])
plt.plot([0, 1], [0, 1], color='navy', lw=lw, linestyle='--')
plt.xlim([0.0, 1.0])
plt.ylim([0.0, 1.05])
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')
plt.title('Receiver operating characteristic example')
plt.legend(loc="lower right")
plt.show()

我怀疑错误出在这一行：

fpr["micro"], tpr["micro"], _ = roc_curve(y_test.ravel(), y_score.ravel())
roc_auc["micro"] = auc(fpr["micro"], tpr["micro])

，但我对ROC曲线还是个初学者，所以能否有人指导我解决这个问题。非常感谢您的时间和帮助。这里是我关于ROC曲线的另一个问题。顺便提一下，以下是完整的回溯信息。希望我的解释足够清晰明了。

Traceback (most recent call last):

  File "<ipython-input-1-16eb0db9d4d9>", line 1, in <module>
    runfile('C:/Users/Think/Desktop/Python Practice/ROC with decision tree.py', wdir='C:/Users/Think/Desktop/Python Practice')

  File "C:\Users\Think\Anaconda2\lib\site-packages\spyder\utils\site\sitecustomize.py", line 880, in runfile
    execfile(filename, namespace)

  File "C:\Users\Think\Anaconda2\lib\site-packages\spyder\utils\site\sitecustomize.py", line 87, in execfile
    exec(compile(scripttext, filename, 'exec'), glob, loc)

  File "C:/Users/Think/Desktop/Python Practice/ROC with decision tree.py", line 47, in <module>
    fpr["micro"], tpr["micro"], _ = roc_curve(y_test.ravel(), y_score.ravel())

  File "C:\Users\Think\Anaconda2\lib\site-packages\sklearn\metrics\ranking.py", line 510, in roc_curve
    y_true, y_score, pos_label=pos_label, sample_weight=sample_weight)

  File "C:\Users\Think\Anaconda2\lib\site-packages\sklearn\metrics\ranking.py", line 302, in _binary_clf_curve
    check_consistent_length(y_true, y_score)

  File "C:\Users\Think\Anaconda2\lib\site-packages\sklearn\utils\validation.py", line 173, in check_consistent_length
    " samples: %r" % [int(l) for l in lengths])

ValueError: Found input variables with inconsistent numbers of samples: [26632, 53264]

- yihao ren

我在使用scikit中的鸢尾花数据集测试你的代码时没有遇到任何错误，而该数据集也有3个类别。如果仍然出现错误，你可以上传你的数据吗？ - Vivek Kumar

感谢@Vive Kumar。问题已经解决。我对x resampled和y resampled进行了二值化处理来解决问题，但无论如何，非常感谢您抽出时间查看我的代码。 - yihao ren

3个回答

2

所有这些实现中都存在一个被忽略的关键差异。sklearn中本质上基于树的算法将独热编码（二进制化）的目标标签解释为多标签问题。要获得多类问题的AUC和ROC曲线，必须仅针对ROC计算对输出进行二元化。默认情况下，在内在多类算法中不需要使用任何OneVsRestClassifier。算法。对于非固有多类的算法，使用OVR分类器或避免SVM中的复杂决策功能是有意义的。请参阅以下代码片段，第一个是上面示例中使用的相同代码。第二个是正确的实现，它考虑了多类分类器训练的位置，然后计算各个类别的ROC。检查图形中的差异。

import matplotlib.pyplot as plt
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import label_binarize
from sklearn.metrics import roc_curve, auc
from sklearn.multiclass import OneVsRestClassifier
from sklearn.tree import DecisionTreeClassifier

iris = datasets.load_iris()
X = iris.data
y = iris.target

# Binarize the output
y = label_binarize(y, classes=[0, 1, 2])
n_classes = y.shape[1]

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.5, random_state=0)

classifier = OneVsRestClassifier(DecisionTreeClassifier(random_state=0))
y_score = classifier.fit(X_train, y_train).predict_proba(X_test)


fpr = dict()
tpr = dict()
roc_auc = dict()
for i in range(n_classes):
    fpr[i], tpr[i], _ = roc_curve(y_test[:, i], y_score[:, i])
    roc_auc[i] = auc(fpr[i], tpr[i])
colors = cycle(['blue', 'red', 'green'])
for i, color in zip(range(n_classes), colors):
    plt.plot(fpr[i], tpr[i], color=color, lw=lw,
             label='ROC curve of class {0} (area = {1:0.2f})'
             ''.format(i, roc_auc[i]))

plt.plot([0, 1], [0, 1], 'k--', lw=lw)
plt.xlim([-0.05, 1.0])
plt.ylim([0.0, 1.05])
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')
plt.title('Receiver operating characteristic for multi-class data')
plt.legend(loc="lower right")
plt.show()

import matplotlib.pyplot as plt
from sklearn import datasets
from itertools import cycle
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import label_binarize
from sklearn.metrics import roc_curve, auc
from sklearn.multiclass import OneVsRestClassifier
from sklearn.tree import DecisionTreeClassifier

iris = datasets.load_iris()
X = iris.data
y = iris.target

# Binarize the output

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.5, random_state=0)

classifier = DecisionTreeClassifier(random_state=0)
y_score = classifier.fit(X_train, y_train).predict_proba(X_test)

y_test_bin = label_binarize(y_test, classes=[0, 1, 2])
n_classes = y_test_bin.shape[1]



fpr = dict()
tpr = dict()
roc_auc = dict()
for i in range(n_classes):
    fpr[i], tpr[i], _ = roc_curve(y_test_bin[:, i], y_score[:, i])
    roc_auc[i] = auc(fpr[i], tpr[i])
colors = cycle(['blue', 'red', 'green'])
for i, color in zip(range(n_classes), colors):
    plt.plot(fpr[i], tpr[i], color=color,
             label='ROC curve of class {0} (area = {1:0.2f})'
             ''.format(i, roc_auc[i]))

plt.plot([0, 1], [0, 1], 'k--')
plt.xlim([-0.05, 1.0])
plt.ylim([0.0, 1.05])
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')
plt.title('Receiver operating characteristic for multi-class data')
plt.legend(loc="lower right")
plt.show()

- drew_psy

1

问题已通过将以下代码添加到原始代码中解决：y_resampled = label_binarize(y_resampled, classes=['好', '坏', '中等'])

- yihao ren

网页内容由stack overflow 提供, 点击上面的

可以查看英文原文，
原文链接

- seralouk · Accepted Answer

你需要使用DecisionTreeClassifier的predict_proba函数： 例子：

import matplotlib.pyplot as plt
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import label_binarize
from sklearn.metrics import roc_curve, auc
from sklearn.multiclass import OneVsRestClassifier
from sklearn.tree import DecisionTreeClassifier

iris = datasets.load_iris()
X = iris.data
y = iris.target

# Binarize the output
y = label_binarize(y, classes=[0, 1, 2])
n_classes = y.shape[1]

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.5, random_state=0)

classifier = OneVsRestClassifier(DecisionTreeClassifier(random_state=0))
y_score = classifier.fit(X_train, y_train).predict_proba(X_test)


fpr = dict()
tpr = dict()
roc_auc = dict()
for i in range(n_classes):
    fpr[i], tpr[i], _ = roc_curve(y_test[:, i], y_score[:, i])
    roc_auc[i] = auc(fpr[i], tpr[i])
colors = cycle(['blue', 'red', 'green'])
for i, color in zip(range(n_classes), colors):
    plt.plot(fpr[i], tpr[i], color=color, lw=lw,
             label='ROC curve of class {0} (area = {1:0.2f})'
             ''.format(i, roc_auc[i]))

plt.plot([0, 1], [0, 1], 'k--', lw=lw)
plt.xlim([-0.05, 1.0])
plt.ylim([0.0, 1.05])
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')
plt.title('Receiver operating characteristic for multi-class data')
plt.legend(loc="lower right")
plt.show()
