看一下IntrinsicHeight
;将根Row包装起来应该会提供您正在寻找的效果:
import 'package:flutter/material.dart';
void main() => runApp(MyApp());
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Scaffold(
appBar: AppBar(title: Text('Rows & Columns')),
body: RowsAndColumns(),
),
);
}
}
class RowsAndColumns extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Padding(
padding: const EdgeInsets.only(top: 100.0),
child: IntrinsicHeight(
child: Row(crossAxisAlignment: CrossAxisAlignment.stretch, children: [
Expanded(
child: Column(children: [
Container(height: 120.0, color: Colors.yellow),
Container(height: 100.0, color: Colors.cyan),
]),
),
Expanded(child: Container(color: Colors.amber)),
]),
),
);
}
}

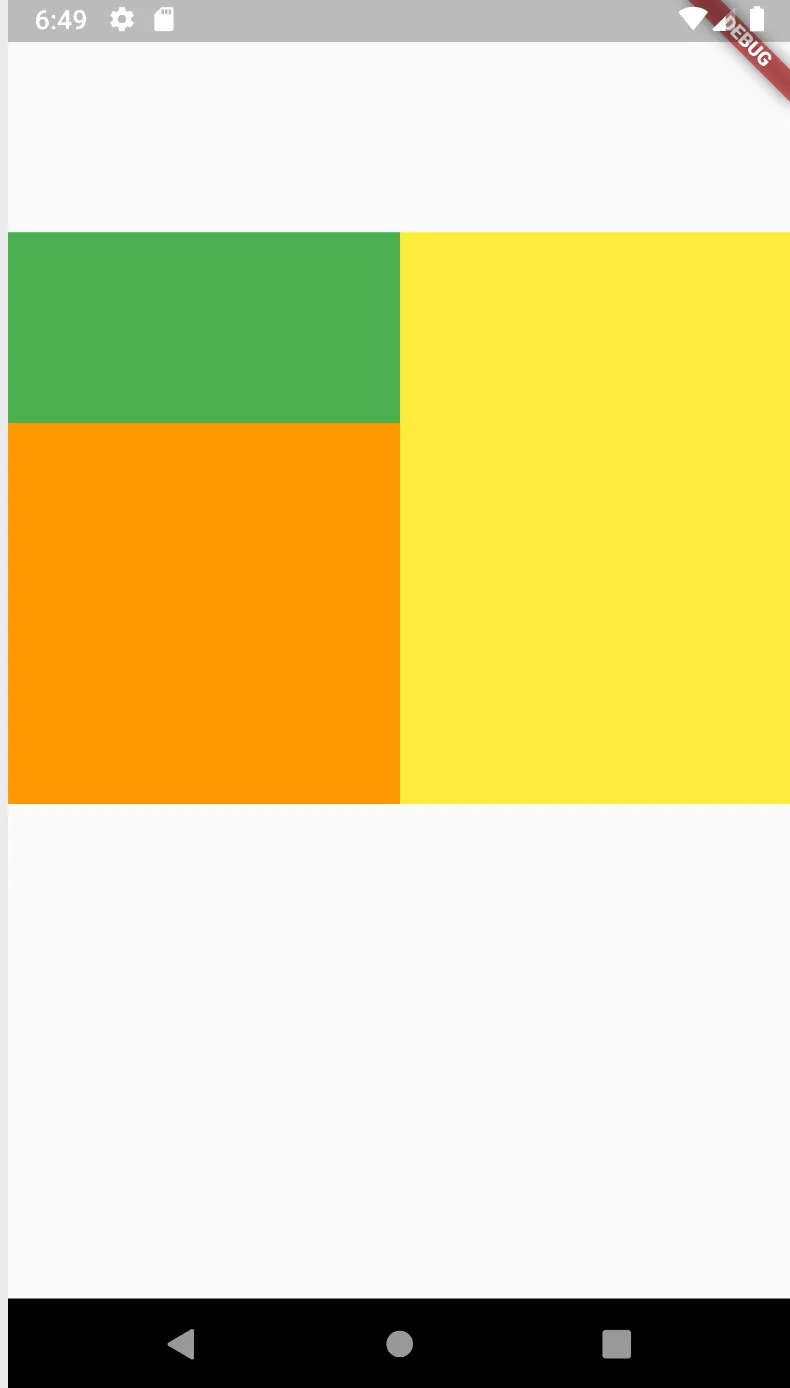

调整列中容器的高度会导致右侧的容器调整大小以匹配:
https://gist.github.com/mjohnsullivan/c5b661d7b3b4ca00599e8ef87ff6ac61
IntrinsicHeight
被认为是相对昂贵的,最好避免使用它。您可以在最大的TableCell
中使用verticalAlignment: TableCellVerticalAlignment.fill和Table
。.fill
,那么TableRow
将具有零高度。 Table(children: [
TableRow(children: [
Column(
crossAxisAlignment: CrossAxisAlignment.stretch,
children: [
Container(
alignment: Alignment.center,
color: Colors.blue,
child: Text('Widget 1'),
),
Container(
alignment: Alignment.center,
color: Colors.green,
child: Text('Widget 2'),
),
],
),
TableCell(
verticalAlignment: TableCellVerticalAlignment.fill,
child: Container(
alignment: Alignment.center,
color: Colors.orange,
child: Text('Widget 3'),
)),
]),
]),
我认为您可以设置行的高度,然后只需要设置列容器的高度,使用 crossAxisAlignment: CrossAxisAlignment.stretch,第二行将会扩展并占用其父容器的高度:
Row(
crossAxisAlignment: CrossAxisAlignment.stretch,
children: [
Expanded(
child: Column(
children: [
Expanded(
// If you don't have the height you can expanded with flex
flex: 1,
child: Container(
height: 50,
color: Colors.blue,
),
),
Expanded(
flex: 1,
child: Container(
height: 50,
color: Colors.red,
),
)
],
),
),
Expanded(
child: Container(
color: Colors.yellow,
),
)
],
)
BoxConstraints forces an infinite height.
错误。 - undefined我刚开始接触flutter,如果我做错了什么,请纠正我。我认为使用setState((){})也可以实现这一点,而不必使用IntrinsicHeight。
import 'package:flutter/material.dart';
void main() {
runApp(MyApp());
}
class MyApp extends StatefulWidget {
@override
State<StatefulWidget> createState() {
return MyAppState();
}
}
class MyAppState extends State<MyApp> {
@override
Widget build(BuildContext context) {
double h1 = 100;
double h2 = 200;
double h3;
setState(() {
h3 = h1 + h2;
});
return MaterialApp(
home: Scaffold(
body: SafeArea(
child: Padding(
padding: const EdgeInsets.only(top: 100.0),
child: Row(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Expanded(
child: Column(
children: [
Container(
color: Colors.green,
height: h1,
),
Container(
color: Colors.orange,
height: h2,
)
],
),
),
Expanded(
child: Container(
color: Colors.yellow,
height: h3,
),
)
],
),
),
),
),
);
}
}
此代码也可在此处找到:https://gist.github.com/Amrit0786/9d228017c2df6cf277fbbaa4a6b20e83
StatefulWidget
的使用。相反地,可以使用内置解决方案的 StatelessWidget
。在布局中使用 Stateful
不是技术上的错误,但除非没有其他选择,否则不应使用它。 - Smily
IntrinsicHeight
的注释:这个类相对来说比较昂贵。尽量避免在可能的情况下使用它。
- stevenspiel
