有没有办法在编辑器窗口的左侧装订线看到以ARGB颜色定义为整数变量的颜色预览。我的意思是像注册资源一样的颜色预览。
这里有一张Photoshop处理过的截图，可以明确地展示我的意思。
Android Studio中的颜色预览
11
- ucMedia
3
4个回答
6
- Nitin Gurbani
3
如果您事先知道所有颜色，请将它们全部导入到colors.xml文件中，然后每次使用颜色时，它将始终显示在左侧。代码如下：
public static void obsidian(ucTheme theme) {
theme.background_color = R.color.obsidian;
theme.id = 1000;
}
最终结果将会是这样的：
- Iulian Popescu
3
对于int ARGB值，这是不可能的，因为IDE无法理解它们是颜色，它们可能只是数字。
另一方面，当您引用资源时，IDE可以在gutter中显示颜色预览，因为通过解析R.color.yourColor，IDE了解到它是一种颜色，而不是R.dimen或其他类型。
或者，您可以考虑编写一个Android Studio插件来实现所需的结果。
- Davide Cannizzo
2

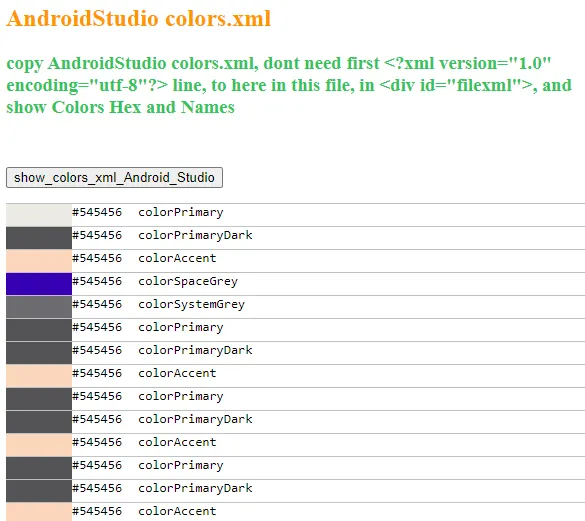

用javascript显示AndroidStudio的colors.xml文件
我创建了一个名为scriptfile.html的文件，并将所有javascript放入其中，以便查看来自AndroidStudio的colors.xml整数变量的颜色预览。
我在scriptfile id="filexml"中粘贴了colors.xml，解析xml并生成具有以下内容的sam << div >>：color | hex | name
希望这可以帮到您：[编辑后的代码片段]
<!DOCTYPE html><html><head><!-- https://www.hexcolortool.com/ XML to json: https://codeload.github.com/andrewhouser/xmlToJson/zip/master -->
<style>
/* whitespacenowrap _ parent */
.whitespacenowrap_parent {
white-space: nowrap;
/* border:1px solid yellow; */
margin:0px;
padding:0px;
}
/* inlineblock _ child */
.inlineblock_child {
height: 17px;
display: inline-block;
border-top: 1px solid silver;
margin:0px;
padding-left:5px;
}
.width_hex_color{ width: 66px; }
.width_name{width: 473px;
/* border-top:0px; */
}
</style></head><body><h5 style="color:#FF9500; margin:2px;">AndroidStudio colors.xml
<span style="color:#33C458"> copy AndroidStudio colors.xml, to here, in this file, in <<div id="filexml">>, and show Colors Hex and Names, dont need first line <<?xml version="1.0" encoding="utf-8"?>></span></h5>
<button onclick="show_colors_xml_Android_Studio()" >show_colors_xml_Android_Studio</button>
<div id="color_div" ></div>
<pre><div id="outprn"></div></pre>
<pre><div id="temp_test_div_id">
temp_test_div_id
<div class="whitespacenowrap_parent"><div class="inlineblock_child width_hex_color">1047</div><div class="inlineblock_child width_hex_color" style="background:#6C6C70;"> </div><div class="inlineblock_child width_hex_color">#6C6C70</div><div class="inlineblock_child width_name">colorGray2c</div></div><div class="whitespacenowrap_parent"><div class="inlineblock_child width_hex_color">1048</div><div class="inlineblock_child width_hex_color" style="background:#48484A;"> </div><div class="inlineblock_child width_hex_color">#48484A</div><div class="inlineblock_child width_name">colorGray3c</div></div>
temp_test_div_id
</div></pre>
<pre>
<!-- ##############################
############################
###########################
##########################
#########################
########################
#######################
paste colors.xml AndroidStudio
in div id="filexml"
--><div id="filexml">
<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#545456</color>
<color name="colorPrimaryDark">#545456</color>
<color name="colorAccent">#fbd7bd</color>
<color name="colorDummyBeginOriginalAndroidStudioColors">#ff0bff</color>
<color name="colorPrimaryDarkAStudio">#3700B3</color>
<color name="colorPrimaryAStudio">#6200EE</color>
<color name="colorAccentAStudio">#03DAC5</color>
<color name="colorDummyEndOriginalAndroidStudioColors">#ff0eff</color>
<color name="colorGreenAccentAStudioa">#03DAC5</color>
<color name="colorWhiteGreenc">#addac5</color>
<color name="colorGreena">#33C458</color>
<color name="colorGreenc">#30D158</color>
<color name="colorGreenMidnighta">#4e5850</color>
<color name="colorGreenMidnightc">#004953</color>
<color name="colorBlueTeala">#5AC8FA</color>
<color name="colorBlueTealc">#64D2FF</color>
<color name="colorBluePantoned">#5EB0E5</color>
<color name="colorBluec">#0A84FF</color>
<color name="colorBluea">#007AFF</color>
<color name="colorBlueIndigoc">#5E5CE6</color>
<color name="colorBlueIndigoa">#5856D6</color>
<color name="colorBlueb">#0040DD</color>
<color name="colorBlueTealDarkd">#0071A4</color>
<color name="colorBlueDarkc">#010f8a</color>
<color name="colorBlueIndigoDarkb">#3634A3</color>
<color name="colorBluePrimaryDarkAStudioa">#3700B3</color>
<color name="colorBluePurpleb">#8944AB</color>
<color name="colorBluePurpleVioletDark">#8944AB</color>
<color name="colorBluePurplec">#BF5AF2</color>
<color name="colorBluePurplea">#AF52DE</color>
<color name="colorPinkd">#FF6482</color>
<color name="colorRedsystemc">#FF453A</color>
<color name="colorPinka">#FF375F</color>
<color name="colorRedsystema">#FF3B30</color>
<color name="colorPinkc">#FF375F</color>
<color name="colorPinkb">#D30F45</color>
<color name="colorRedPantonee">#BA0C2E</color>
<color name="colorGraySpacegraySilverc">#52514f</color>
<color name="colorGraySilverc">#52514f</color>
<color name="colorGrayb">#6C6C70</color>
<color name="colorGray2a">#8E8E93</color>
<color name="colorGray3b">#AEAEB2</color>
<color name="colorGray3a">#C7C7CC</color>
<color name="colorGray4a">#D1D1D6</color>
<color name="colorGray5a">#E5E5EA</color>
<color name="colorGrey6b">#EBEBF0</color>
<color name="colorGrey6a">#F2F2F7</color>
<color name="colorWhitePantonec">#F9F6EF</color>
<color name="colorGraySilverSystemc">#ebebef</color>
<color name="colorGraySilverSystema">#ebebe3</color>
<color name="colorSilverPantonea">#E4E4E2</color>
<color name="colorGrayc">#98989D</color>
<color name="colorGraya">#8E8E93</color>
<color name="colorGray2c">#6C6C70</color>
<color name="colorGray3d">#545456</color>
<color name="colorGray3c">#48484A</color>
<color name="colorGray4c">#3A3A3C</color>
<color name="colorGray5c">#2C2C2E</color>
<color name="colorGrey6c">#1C1C1E</color>
<color name="colorGrey6d">#242426</color>
<color name="colorGolde">#fbd7bd</color>
<color name="colorGoldRosePantoneb">#E6C7C2</color>
<color name="colorWhiteRosea">#dbc1ef</color>
<color name="colorYellowa">#FFCC00</color>
<color name="colorYellowc">#FFD60A</color>
<color name="colorRoseBrowna">#de9e95</color>
<color name="colorGoldYellowBrowna">#b69221</color>
<color name="colorOrangea">#FF9500</color>
<color name="colorOrangeb">#FF9500</color>
</resources>
</div><!-- filexml end
paste colors.xml AndroidStudio
in div id="filexml" above
########################
#########################
##########################
###########################
############################
#############################
##############################
-->
<div id="outprn1"></div>
<div id="outprn2"></div>
<div id="outprn3"></div>
<div id="outprn4"></div>
<div id="outprn5"></div>
<div id="outprn6"></div>
<script type="text/javascript">
var filexml_is_empty=0;
// on buttn click, or window.onload fires when the entire page loads (images, styles, etc.) :
//
window.onload =
function show_colors_xml_Android_Studio() {
if(filexml_is_empty)return;
var debug=false; // console help search: if(debug)
var str = document.getElementById("filexml").innerHTML;
document.getElementById("temp_test_div_id").innerHTML="";
document.getElementById("filexml").innerHTML="";
filexml_is_empty=1;
//clean string str because error in xmlToJson.parse()
// console.log("String ori: ", str);
strH = str.toHtmlEntitiesRemoveBadXMLchars();
// console.log("str toEntities: ", str);
str = String.fromHtmlEntities(strH);
// String is class obj ?
// console.log("clean from htmlentities:", String.fromHtmlEntities(str));
//
// strip xml header because error in strg xml to json xmlToJson.parse()
str = str.match(/\<resources([^\]]*)resources\>/);
// document.getElementById("outprn3").innerHTML = str;
// console.log("match str obj:", str);
// regex match in first str[0]
str=str[0];
var json = xmlToJson.parse( str );
// console.log("json: ", json);
/***/
if(debug){
document.getElementById("outprn3").innerHTML='<br><h3>strH.toHtmlEntities: </h3>'+ strH;
var jsonstr = JSON.stringify(json);
jsonstr=jsonstr.replace(/\[/gm,",[<br><br> ");
jsonstr=jsonstr.replace(/\]/gm,",<br> ]<br>");
jsonstr=jsonstr.replace(/,/gm,",<br> ");
document.getElementById("outprn4").innerHTML='<br><h3>jsonstr:</h3>'+ jsonstr;
console.log("match parse:", jsonstr);
console.log("str:", str);
console.log("json[0]", json[0]); // erster char!!!!!
console.log('json["resources"]: ', json["resources"] );//color: array 3
console.log("json.resources: ", json.resources );
console.log("json.resources.color: ", json.resources.color );
console.log("json.resources.color[0]: ", json.resources.color[0] );
console.log("json.resources.color[0].name: ", json.resources.color[0].name );
console.log("json.resources.color[0].text: ", json.resources.color[0].text );
console.log("json.resources.color[1].name: ", json.resources.color[1].name );
console.log("json.resources.color[1].text: ", json.resources.color[1].text );
console.log("json.resources.color[2].name: ", json.resources.color[2].name );
console.log("json.resources.color[2].text: ", json.resources.color[2].text );
//console.log("json.resources.color[0][0]: ", json.resources.color[0][0] ); //undef
//console.log("json.resources.color.name: ", json.resources.color.name ); //undef
}
/***/
console.log('Object.keys(json).length: ', Object.keys(json.resources.color).length )// 3
document.getElementById("outprn").innerHTML=' <small > Object.keys(json).length: '+ Object.keys(json.resources.color).length +'</small>';
var cdiv = document.getElementById("color_div").innerHTML;
n=Object.keys(json.resources.color).length;
// test XML problem:
// n=n+2; //ok, til error, todo: error check
for(let i=0; i<n; i++){
cdiv += color_num(i, json);
// ok function til ERROR and show htm til error
document.getElementById("color_div").innerHTML = cdiv;
}
}
// ver_2 color name text move to right
function color_num(n, json){
var color_div ='<div class="whitespacenowrap_parent">';
/* add line number 100+n /***/
color_div+='<div class="inlineblock_child width_hex_color" >';
color_div+=1001+n;
color_div+='</div>';
/***/
color_div+='<div class="inlineblock_child width_hex_color" style="background:';
color_div+=json.resources.color[ n ].text;
color_div+=';"> </div><div class="inlineblock_child width_hex_color">';
color_div+=json.resources.color[ n ].text;
color_div+='</div><div class="inlineblock_child width_name">';
color_div+=b6=json.resources.color[ n ].name;
color_div+='</div></div>';
return color_div;
}
/**
* Convert a string to HTML entities , ORIGINAL
*/
String.prototype.toHtmlEntities = function() {
return this.replace(/[\s\S]/gm, function(s) {
// return this.replace(/./gm, function(s) {
// \s Find a whitespace character
// \S Find a non-whitespace character
// return "&#" + s.charCodeAt(0) + ";";
return (s.match(/[a-z0-9\s]+/i)) ? s : "&#" + s.charCodeAt(0) + ";";
});
};
// add strip bad xml chars
// Where he links to this article: http://www.w3.org/TR/xml/#charsets
// Basically, all characters below 0x20 is disallowed,
// except 0x9 (TAB), 0xA (CR?), 0xD (LF?)
String.prototype.toHtmlEntitiesRemoveBadXMLchars = function() {
// \s Find a whitespace character
// \S Find a non-whitespace character [\s\S]
//return this.replace(/./gm, function(s) { // [\s\S]
return this.replace(/[\s\S]/gm, function(s) {
// return "&#" + s.charCodeAt(0) + ";";
//add
var q=s.charCodeAt(0);
return (s.match(/[a-z0-9\s]+/i)) ? s :
s=
(
q== 0x9 || q== 0xA || q== 0xD ||
((q>= 0x20) && (q<= 0xD7FF)) ||
((q>= 0xE000) && (q<= 0xFFFD)) ||
((q>= 0x10000) && (q<= 0x10FFFF ))
)?
"&#" + s.charCodeAt(0) + ";"
:
""
;
});
};
/**
* Create string from HTML entities
*/
String.fromHtmlEntities = function(string) {
return (string+"").replace(/&#\d+;/gm,function(s) {
return String.fromCharCode(s.match(/\d+/gm)[0]);
})
};
</script></pre>
<!--
this min version do not work here for me,
so I copy xmlToJson.js to the end
- ->
<script type="text/javascript">if(typeof Object.assign!="function"){Object.defineProperty(Object,"assign",{value:function assign(r,n){"use strict";if(r==null){throw new TypeError("Cannot convert undefined or null to object")}var t=Object(r);for(var e=1;e<arguments.length;e++){var i=arguments[e];if(i!=null){for(var f in i){if(Object.prototype.hasOwnProperty.call(i,f)){t[f]=i[f]}}}}return t},t:true,i:true})}var xmlToJson=function(){var r=this;r.u=function(r,n,t){if(!r[n]){r[n]=t}else{if(!Array.isArray(r[n])){var e=r[n];r[n]=[];r[n].push(e)}r[n].push(t)}};r.o=function(r){var n=null;if(r&&typeof r==="string"){var t=new DOMParser;n=t.parseFromString(r,"application/xml")}return n};r.l=function(r){var n=(r?r.ownerDocument||r:0).documentElement;return n?n.nodeName.toLowerCase()!=="html":false};r.s=function(n){var t=n.attributes,e={};if(n.hasAttributes()){for(var i=0;i<t.length;i++){e[t[i].name]=r.v(t[i].value)}}return e};r.j=function(n,t){if(t.length>0){for(var e=0;e<t.length;e++){if(t[e].nodeType==1){r.p(n,t[e])}}}};r.p=function(n,t){var e=t.nodeName,i=Object.assign({},r.s(t)),f=null;if(t.childNodes.length==1&&t.childNodes[0].nodeType==3){if(t.hasAttributes()){i["text"]=r.v(t.childNodes[0].nodeValue)}else{i=r.v(t.childNodes[0].nodeValue)}}else{r.j(i,t.childNodes)}r.u(n,e,i);return n};this.v=function(r){var n=Number(r);if(r.toLowerCase()==="true"||r.toLowerCase()==="false"){return r.toLowerCase()=="true"?true:false}return isNaN(n)?r:r.length==0?null:n};return{parse:function(n){if(n&&typeof n==="string"){
n=this.o(n)}return n&&r.l(n)?r.p({},n.firstChild):null}}}();</script><!-- error this.o is not a function -->
<!-- - -><script type="text/javascript" src="xmlToJson.js"></script><!-- -->
<script type="text/javascript">
/**
<!--
https://www.hexcolortool.com/
XML to json download
https://codeload.github.com/andrewhouser/xmlToJson/zip/master
-->
*/
/**
* Object assign is required, so ensure that browsers know how to execute this method
*
* @method Object.assign
* @returns {Function}
*/
if (typeof Object.assign != 'function') {
// Must be writable: true, enumerable: false, configurable: true
Object.defineProperty(Object, "assign", {
value: function assign(target, varArgs) { // .length of function is 2
'use strict';
if (target == null) { // TypeError if undefined or null
throw new TypeError('Cannot convert undefined or null to object');
}
var to = Object(target);
for (var index = 1; index < arguments.length; index++) {
var nextSource = arguments[index];
if (nextSource != null) { // Skip over if undefined or null
for (var nextKey in nextSource) {
// Avoid bugs when hasOwnProperty is shadowed
if (Object.prototype.hasOwnProperty.call(nextSource, nextKey)) {
to[nextKey] = nextSource[nextKey];
}
}
}
}
return to;
},
writable: true,
configurable: true
});
}
/**
* Object to convert XML into a structured JSON object
*
* @method xmlToJson
* @returns {Object}
*/
var xmlToJson = (function () {
var self = this;
/**
* Adds an object value to a parent object
*
* @method addToParent
* @param {Object} parent
* @param {String} nodeName
* @param {Mixed} obj
* @returns none
*/
self.addToParent = function (parent, nodeName, obj) {
// If this is the first or only instance of the node name, assign it as
// an object on the parent.
if (!parent[nodeName]) {
parent[nodeName] = obj;
}
// Else the parent knows about other nodes of the same name
else {
// If the parent has a property with the node name, but it is not an array,
// store the contents of that property, convert the property to an array, and
// assign what was formerly an object on the parent to the first member of the
// array
if (!Array.isArray(parent[nodeName])) {
var tmp = parent[nodeName];
parent[nodeName] = [];
parent[nodeName].push(tmp);
}
// Push the current object to the collection
parent[nodeName].push(obj);
}
};
self.convertXMLStringToDoc = function (str) {
var xmlDoc = null;
if (str && typeof str === 'string') {
// Create a DOMParser
var parser = new DOMParser();
// Use it to turn your xmlString into an XMLDocument
xmlDoc = parser.parseFromString(str, 'application/xml');
}
return xmlDoc;
}
/**
* Validates if an data is an XMLDocument
*
* @method isXML
* @param {Mixed} data
* @returns {Boolean}
*/
self.isXML = function (data) {
var documentElement = (data ? data.ownerDocument || data : 0).documentElement;
return documentElement ? documentElement.nodeName.toLowerCase() !== 'html' : false;
};
/**
* Reads through a node's attributes and assigns the values to a new object
*
* @method parseAttributes
* @param {XMLNode} node
* @returns {Object}
*/
self.parseAttributes = function (node) {
var attributes = node.attributes,
obj = {};
// If the node has attributes, assign the new object properties
// corresponding to each attribute
if (node.hasAttributes()) {
for (var i = 0; i < attributes.length; i++) {
obj[attributes[i].name] = self.parseValue(attributes[i].value);
}
}
// return the new object
return obj;
};
/**
* Rips through child nodes and parses them
*
* @method parseChildren
* @param {Object} parent
* @param {XMLNodeMap} childNodes
* @returns none
*/
self.parseChildren = function (parent, childNodes) {
// If there are child nodes...
if (childNodes.length > 0) {
// Loop over all the child nodes
for (var i = 0; i < childNodes.length; i++) {
// If the child node is a XMLNode, parse the node
if (childNodes[i].nodeType == 1) {
self.parseNode(parent, childNodes[i]);
}
}
}
};
/**
* Converts a node into an object with properties
*
* @method parseNode
* @param {Object} parent
* @param {XMLNode} node
* @returns {Object}
*/
self.parseNode = function (parent, node) {
var nodeName = node.nodeName,
obj = Object.assign({}, self.parseAttributes(node)),
tmp = null;
// If there is only one text child node, there is no need to process the children
if (node.childNodes.length == 1 && node.childNodes[0].nodeType == 3) {
// If the node has attributes, then the object will already have properties.
// Add a new property 'text' with the value of the text content
if (node.hasAttributes()) {
obj['text'] = self.parseValue(node.childNodes[0].nodeValue);
}
// If there are no attributes, then the parent[nodeName] property value is
// simply the interpreted textual content
else {
obj = self.parseValue(node.childNodes[0].nodeValue);
}
}
// Otherwise, there are child XMLNode elements, so process them
else {
self.parseChildren(obj, node.childNodes);
}
// Once the object has been processed, add it to the parent
self.addToParent(parent, nodeName, obj)
// Return the parent
return parent;
};
/**
* Interprets a value and converts it to Boolean, Number or String based on content
*
* @method parseValue
* @param {Mixed} val
* @returns {Mixed}
*/
this.parseValue = function (val) {
// Create a numeric value from the passed parameter
var num = Number(val);
// If the value is 'true' or 'false', parse it as a Boolean and return it
if (val.toLowerCase() === 'true' || val.toLowerCase() === 'false') {
return (val.toLowerCase() == 'true');
}
// If the num parsed to a Number, return the numeric value
// Else if the valuse passed has no length (an attribute without value) return null,
// Else return the param as is
return (isNaN(num)) ? val.trim() : (val.length == 0) ? null : num;
};
// Expose the API
return {
parse: function (xml) {
if (xml && typeof xml === 'string') {
xml = self.convertXMLStringToDoc(xml);
}
return (xml && self.isXML(xml)) ? self.parseNode({}, xml.firstChild) : null;
}
}
})();
</script>
</body></html>- And
1
阿塔，欢迎加入StackOverflow大家庭，并感谢你的回答。 - ucMedia
网页内容由stack overflow 提供, 点击上面的可以查看英文原文，
原文链接
原文链接
color.xml中也可能会发生这种情况，它将不显示任何内容。我想知道是否有办法将此机制扩展到非资源变量！ - ucMedia
