我正在尝试设计一种生成随机二维凸多边形的方法。它必须具备以下特点:
- 坐标应为整数;
- 多边形应位于以(0,0)和(C,C)为角的正方形内,其中C已知;
- 多边形的顶点数应接近给定的数字N。
例如,生成具有10个顶点且位于区间[0..100]x[0..100]的随机多边形。
这项任务的难点在于坐标必须为整数。
我的方法是在给定的正方形中生成一组随机点,并计算这些点的凸包。但是得到的凸包顶点很少,远少于N。
有什么想法吗?
这里提供了一个动画和Java实现: 生成随机凸多边形。
该算法基于Pavel Valtr的一篇论文:“n个随机点在凸位置的概率。”《离散与计算几何》13.1 (1995): 637-643。
根据@Mangara的答案,这里有一个JAVA实现,如果有人对Python移植感兴趣。
import random
from math import atan2
def to_convex_contour(vertices_count,
x_generator=random.random,
y_generator=random.random):
"""
Port of Valtr algorithm by Sander Verdonschot.
Reference:
http://cglab.ca/~sander/misc/ConvexGeneration/ValtrAlgorithm.java
>>> contour = to_convex_contour(20)
>>> len(contour) == 20
True
"""
xs = [x_generator() for _ in range(vertices_count)]
ys = [y_generator() for _ in range(vertices_count)]
xs = sorted(xs)
ys = sorted(ys)
min_x, *xs, max_x = xs
min_y, *ys, max_y = ys
vectors_xs = _to_vectors_coordinates(xs, min_x, max_x)
vectors_ys = _to_vectors_coordinates(ys, min_y, max_y)
random.shuffle(vectors_ys)
def to_vector_angle(vector):
x, y = vector
return atan2(y, x)
vectors = sorted(zip(vectors_xs, vectors_ys),
key=to_vector_angle)
point_x = point_y = 0
min_polygon_x = min_polygon_y = 0
points = []
for vector_x, vector_y in vectors:
points.append((point_x, point_y))
point_x += vector_x
point_y += vector_y
min_polygon_x = min(min_polygon_x, point_x)
min_polygon_y = min(min_polygon_y, point_y)
shift_x, shift_y = min_x - min_polygon_x, min_y - min_polygon_y
return [(point_x + shift_x, point_y + shift_y)
for point_x, point_y in points]
def _to_vectors_coordinates(coordinates, min_coordinate, max_coordinate):
last_min = last_max = min_coordinate
result = []
for coordinate in coordinates:
if _to_random_boolean():
result.append(coordinate - last_min)
last_min = coordinate
else:
result.append(last_max - coordinate)
last_max = coordinate
result.extend((max_coordinate - last_min,
last_max - max_coordinate))
return result
def _to_random_boolean():
return random.getrandbits(1)
以下翻译仅供参考,可能不完全,请您谅解。

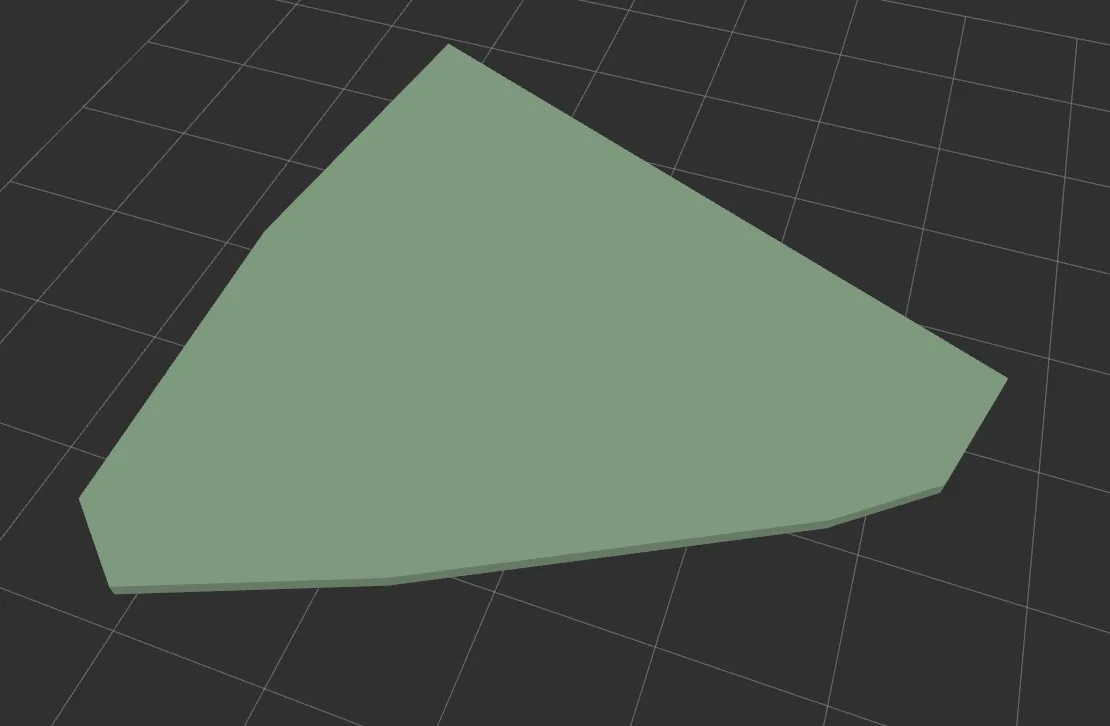

如果N<3,则退出。生成一个具有N个顶点的单位圆,并将其随机旋转[0..90]度。
随机从原点向外挤出每个顶点,并使用相邻顶点与原点之间的叉积符号来确定凸性。这是速度和质量之间存在折衷的步骤。
设置顶点后,找到距离原点最远的顶点。将每个顶点除以该大小以归一化多边形,然后按比例缩放(C/2)。平移至(C/2,C/2)并转换为整数。
import numpy as np
import numpy.typing and npt
def generateConvex(n: int) -> npt.NDArray[np.float64]:
'''
Generate convex shappes according to Pavel Valtr's 1995 alogrithm. Ported from
Sander Verdonschot's Java version, found here:
https://cglab.ca/~sander/misc/ConvexGeneration/ValtrAlgorithm.java
'''
# initialise random coordinates
X_rand, Y_rand = np.sort(np.random.random(n)), np.sort(np.random.random(n))
X_new, Y_new = np.zeros(n), np.zeros(n)
# divide the interior points into two chains
last_true = last_false = 0
for i in range(1, n):
if i != n - 1:
if random.getrandbits(1):
X_new[i] = X_rand[i] - X_rand[last_true]
Y_new[i] = Y_rand[i] - Y_rand[last_true]
last_true = i
else:
X_new[i] = X_rand[last_false] - X_rand[i]
Y_new[i] = Y_rand[last_false] - Y_rand[i]
last_false = i
else:
X_new[0] = X_rand[i] - X_rand[last_true]
Y_new[0] = Y_rand[i] - Y_rand[last_true]
X_new[i] = X_rand[last_false] - X_rand[i]
Y_new[i] = Y_rand[last_false] - Y_rand[i]
# randomly combine x and y and sort by polar angle
np.random.shuffle(Y_new)
vertices = np.stack((X_new, Y_new), axis=-1)
vertices = vertices[np.argsort(np.arctan2(vertices[:, 1], vertices[:, 0]))]
# arrange points end to end to form a polygon
vertices = np.cumsum(vertices, axis=0)
# center around the origin
x_max, y_max = np.max(vertices[:, 0]), np.max(vertices[:, 1])
vertices[:, 0] += ((x_max - np.min(vertices[:, 0])) / 2) - x_max
vertices[:, 1] += ((y_max - np.min(vertices[:, 1])) / 2) - y_max
return vertices
#include <algorithm>
#include <iostream>
#include <random>
struct randPoly {
int RND_MAX = 655369;
std::random_device dev;
std::mt19937 rng;
std::uniform_int_distribution<std::mt19937::result_type> random_numer;
std::uniform_int_distribution<std::mt19937::result_type> random_logic;
randPoly() : rng(dev()), random_numer(0, RND_MAX), random_logic(0, 1) {}
virtual ~randPoly() {}
int generate(const int n, const double r0, std::vector<double>& poly_x,
std::vector<double>& poly_y) {
auto gen = [&]() { return random_numer(rng); };
// initialize random samples and sort them
int m = n / 2;
std::vector<int> x(n), y(n), vx(n), vy(n), idx(n);
std::vector<double> a(n);
std::generate(x.begin(), x.end(), gen);
std::generate(y.begin(), y.end(), gen);
std::iota(idx.begin(), idx.end(), 0);
std::sort(x.begin(), x.end());
std::sort(y.begin(), y.end());
// divide samples and get vector component
int x0 = x[0], x1 = x0;
for (int k = 1; k < n - 1; ++k) {
if (random_logic(rng)) {
vx[k - 1] = x[k] - x0;
x0 = x[k];
} else {
vx[k - 1] = x1 - x[k];
x1 = x[k];
}
}
vx[n - 2] = x[n - 1] - x0;
vx[n - 1] = x1 - x[n - 1];
int y0 = y[0], y1 = y0;
for (int k = 1; k < n - 1; ++k) {
if (random_logic(rng)) {
vy[k - 1] = y[k] - y0;
y0 = y[k];
} else {
vy[k - 1] = y1 - y[k];
y1 = y[k];
}
}
vy[n - 2] = y[n - 1] - y0;
vy[n - 1] = y1 - y[n - 1];
// random pair up vector components and sort by angle
std::shuffle(vy.begin(), vy.end(), rng);
for (int k = 0; k < n; ++k) {
a[k] = std::atan2(vy[k], vx[k]);
}
std::sort(idx.begin(), idx.end(),
[&a](int& lhs, int& rhs) { return a[lhs] < a[rhs]; });
// form the polygon by connencting vectors
double x_max = 0, y_max = 0, x_min = 0, y_min = 0;
x[0] = y[0] = 0;
for (int k = 1; k < n; ++k) {
x[k] = x[k - 1] + vx[idx[k - 1]];
y[k] = y[k - 1] + vy[idx[k - 1]];
if (x[k] > x_max) {
x_max = x[k];
} else if (x[k] < x_min) {
x_min = x[k];
}
if (y[k] > y_max) {
y_max = y[k];
} else if (y[k] < y_min) {
y_min = y[k];
}
}
// center and resize the polygon
poly_x.resize(n);
poly_y.resize(n);
double x_offset = -(x_max + x_min) / 2.0;
double y_offset = -(y_max + y_min) / 2.0;
double scale = r0 / std::max(x_max - x_min, y_max - y_min);
for (int k = 0; k < n; ++k) {
poly_x[k] = scale * (x[k] + x_offset);
poly_y[k] = scale * (y[k] + y_offset);
}
return 0;
}
};
int main(int, char**) {
randPoly rp;
std::vector<double> poly_x, poly_y;
rp.generate(8, 2.0, poly_x, poly_y);
for (int k = 0; k < poly_x.size(); ++k) {
std::cout << poly_x[k] << " " << poly_y[k] << std::endl;
}
}
多亏了@Mangara的回答和@Azat的回答,我也制作了Ruby端口:
#!/usr/bin/env ruby
# frozen_string_literal: true
module ValtrAlgorithm
module_function def random_polygon(length)
raise ArgumentError, "length should be > 2" unless length > 2
min_x, *xs, max_x = Array.new(length) { rand }.sort
min_y, *ys, max_y = Array.new(length) { rand }.sort
# Divide the interior points into two chains and
# extract the vector components.
vec_xs = to_random_vectors(xs, min_x, max_x)
vec_ys = to_random_vectors(ys, min_y, max_y).
# Randomly pair up the X- and Y-components
shuffle
# Combine the paired up components into vectors
vecs = vec_xs.zip(vec_ys).
# Sort the vectors by angle, in a counter clockwise fashion. Remove the
# `-` to make it clockwise.
sort_by { |x, y| - Math.atan2(y, x) }
# Lay them end-to-end
point_x = point_y = 0
min_polygon_x = min_polygon_y = 0
points = []
vecs.each do |vec_x, vec_y|
points.append([vec_x, vec_y])
point_x += vec_x
point_y += vec_y
min_polygon_x = [min_polygon_x, point_x].min
min_polygon_y = [min_polygon_y, point_y].min
end
shift_x = min_x - min_polygon_x
shift_y = min_y - min_polygon_y
result = points.map { |point_x, point_y| [point_x + shift_x, point_y + shift_y] }
# Append first point to make it a valid linear ring
result << result.first
end
private def to_random_vectors(coordinates, min, max)
last_min = last_max = min
ary = []
coordinates.each do |coordinate|
if rand > 0.5
ary << coordinate - last_min
last_min = coordinate
else
ary << last_max - coordinate
last_max = coordinate
end
end
ary << max - last_min << last_max - max
end
end
你的初始方法是正确的 - 计算凸包是满足随机性、凸性和整数性的唯一方法。
我能想到的优化算法以获得更多点的唯一方法是将它们围绕一个圆形排列,而不是完全随机。你的点应该更可能靠近正方形的“边缘”而不是中心。在中心,概率应该是 ~0,因为多边形必须是凸的。
一个简单的选择是设置点出现的最小半径 - 可能是C/2或C*0.75。计算C正方形的中心,如果一个点太靠近,就将其移离中心直到达到最小距离。
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Polygon
rng = np.random.default_rng()
def generateConvex(n):
# initialise random coordinates
XY_rand = np.sort(rng.random((n, 2)), axis=0)
# divide the interior points into two chains
rand_bool = rng.choice([True, False], n-2)
pos, neg = XY_rand[1:-1][rand_bool], XY_rand[1:-1][~rand_bool]
pos = np.vstack((XY_rand[0], pos, XY_rand[-1]))
neg = np.vstack((XY_rand[0], neg, XY_rand[-1]))
vertices = np.vstack((pos[1:] - pos[:-1], neg[:-1] - neg[1:]))
# randomly combine x and y and sort by polar angle
rng.shuffle(vertices[:,1])
vertices = vertices[np.argsort(np.arctan2(vertices[:, 1], vertices[:, 0]))]
# arrange points end to end to form a polygon
vertices = np.cumsum(vertices, axis=0)
# center around the origin
x_max, y_max = np.max(vertices[:, 0]), np.max(vertices[:, 1])
vertices[:, 0] -= (x_max + np.min(vertices[:, 0])) / 2
vertices[:, 1] -= (y_max + np.min(vertices[:, 1])) / 2
return vertices
if __name__ == '__main__':
n = 42
p = Polygon(generateConvex(n))
fig, ax = plt.subplots()
ax.add_patch(p)
plt.title(f'{n}-sided convex polygon')
plt.axis('equal')
plt.show()
