如何在JavaFX中显示非矩形形状的Pane？

Question

我在JavaFX中遇到了问题。

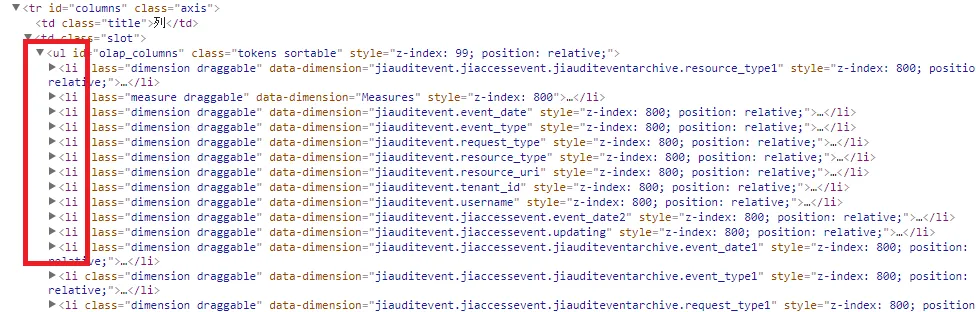

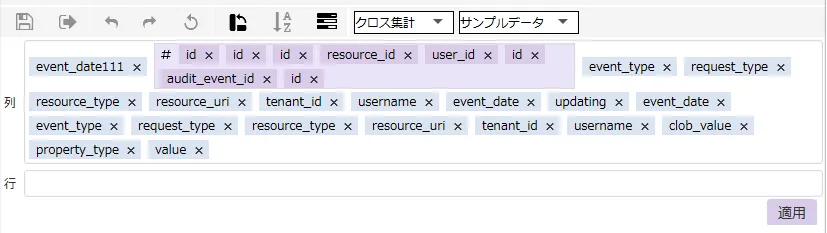

这是在Jasperserver（服务器）Adhoc-Model（服务器模型之一）中显示的内容。 Image: Jasperserver Adhoc Layout Image: Inner HTML Code 正如您所看到的，粉色区域是一种HTML

标签。它可以显示具有非矩形形状的UI。像俄罗斯方块吗？

然而，我尝试在JavaFX中做同样的事情却失败了。

我使用FlowPane作为面板A，并将一些Label放入面板A。然后我使用一个小的FlowPane作为面板B，也将一些Label放入面板B。最后，我将面板B放入面板A。

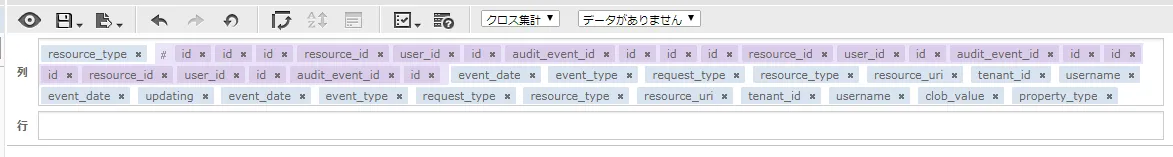

它显示如下图像。 Image: Shown in JavaFX 如您所见，我未能以非矩形形状显示Pane B。而且我认为这并不是很容易做到的。

有人能帮助我吗？您的答复将不胜感激。非常感谢。

如果有人需要我的代码，请告诉我。我会重写一些简单的代码并放在这里。

- peterpan

---

如果可能的话，您需要使用自定义面板，并自己定义布局来实现。我会通过为每个子节点（在您的示例中是Label）设置样式来处理这个问题。只需使用单个FlowPane并将相关标签样式设置为粉色背景即可。 - James_D

谢谢您的回复，@James_D。您有任何建议的自定义窗格吗？或者您有任何简单的代码来定义布局吗？谢谢。 - peterpan

不，这并不是一件简单的事情。您需要子类化Pane并覆盖layoutChildren()，然后布局各种子节点以实现所需的效果。那么，更简单的建议有什么问题吗？ - James_D

谢谢。它有效！ - peterpan

Answer 1

非常感谢@James_D。

我编写了一个自定义面板，它继承自FlowPane，并重写了layoutChildren()函数。

它可以正常工作！

以下是我的代码：

import java.util.ArrayList;
import java.util.List;

import javafx.geometry.HPos;
import javafx.geometry.Insets;
import javafx.geometry.VPos;
import javafx.scene.Node;
import javafx.scene.control.Label;
import javafx.scene.layout.FlowPane;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.Region;

public class LayoutFlowPane extends FlowPane {

    private class Child {
        Node node;
        double x, y, w, h;
        double blft, midy;
        public Child(Node node,
                double x, double y, double w, double h,
                double blft, double midy) {
            super();
            this.node = node;
            this.x = x;
            this.y = y;
            this.w = w;
            this.h = h;
            this.blft = blft;
            this.midy = midy;
        }
    }

    private List<Child> children = new ArrayList<>();
    private List<Double> midys = new ArrayList<>();

    public LayoutFlowPane() {
        super();
    }

    @Override protected void layoutChildren() {

        super.layoutChildren();

        Insets insets = getInsets();
        double width = getWidth();
        double height = getHeight();
        double top = insets.getTop();
        double left = insets.getLeft();
        double bottom = insets.getBottom();
        double right = insets.getRight();
        double maxw = width - left - right;
        double maxh = height - top - bottom;
        double hgap = snapSpace(this.getHgap());
        double vgap = snapSpace(this.getVgap());

        storeChildren();

        adjustChildren(maxw, maxh, hgap, vgap);

        children.forEach(child -> {
            layoutInArea(
                    child.node, child.x, child.y,
                    child.w, child.h, child.blft, getMargin(child.node),
                    getColumnHalignmentInternal(), getRowValignmentInternal()
            );
        });
    }

    private void storeChildren() {
        children = new ArrayList<>();
        for (int i = 0; i < getChildren().size(); i ++) {
            Node child = getChildren().get(i);
            double x = child.getLayoutX();
            double y = child.getLayoutY();
            double w = 0;
            double h = 0;
            if (child instanceof Region) {
                Region region = (Region) child;
                w = region.getWidth();
                h = region.getHeight();
            } else {
                throw new UnknowTypeException("Unknow type found.");
            }
            double blft = child.getBaselineOffset();
            double midy = (y + y + h) / 2;
            Child newChild = new Child(child, x, y, w, h, blft, midy);
            children.add(newChild);
        }
        midys = new ArrayList<>();
        for (int i = 0; i < children.size(); i ++) {
            Child child = children.get(i);
            if (midys.isEmpty() || midys.get(midys.size()-1) != child.midy) {
                midys.add(child.midy);
            }
        }
    }

    private void adjustChildren(double maxw, double maxh, double hgap, double vgap) {
        for (int i = 1; i < children.size(); i ++) { // begin with 1
            Child pc = children.get(i-1);
            Child ch = children.get(i);
            boolean bothGridPane = (pc.node instanceof GridPane) && (ch.node instanceof GridPane);
            double x = pc.x + pc.w + (bothGridPane ? 0 : hgap);
            double midy;
            if (x + ch.w <= maxw) { // ThisLine
                midy = pc.midy;
                ch.x = x;
                ch.y = gety(ch.y, ch.midy, midy);
                ch.midy = midy;
            } else { // NextLine
                midy = getNextMidy(pc.midy);
                ch.x = children.get(0).x;
                ch.y = gety(ch.y, ch.midy, midy);
                ch.midy = midy;
            }
        }
    }

    private double getNextMidy(double midy) {
        for (int i = 0; i < midys.size(); i ++) {
            if (i + 1 < midys.size() && midys.get(i) == midy && midys.get(i+1) != midy) {
                return midys.get(i+1);
            } else if (i + 1 == midys.size() && midys.get(i) == midy) {
                return midys.get(i);
            }
        }
        throw new NotFoundException("Next midy not found.");
    }

    private double gety(double oldy, double oldMidy, double newMidy) {
        return oldy + (newMidy - oldMidy);
    }

    private HPos getColumnHalignmentInternal() {
        HPos localPos = getColumnHalignment();
        return null == localPos ? HPos.LEFT : localPos;
    }

    private VPos getRowValignmentInternal() {
        VPos localPos =  getRowValignment();
        return null == localPos ? VPos.CENTER : localPos;
    }

    private class UnknowTypeException extends RuntimeException {
        private static final long serialVersionUID = 1L;
        public UnknowTypeException(String message) {
            super(message);
        }
    }

    private class NotFoundException extends RuntimeException {
        private static final long serialVersionUID = 1L;
        public NotFoundException(String message) {
            super(message);
        }
    }

}

- peterpan
