当一个镜像被推送到V2仓库时,镜像ID是否也会被推送到仓库中呢?是否有可能从V2仓库获取某个仓库的镜像ID呢?
当一个镜像被推送到V2仓库时,镜像ID是否也会被推送到仓库中呢?是否有可能从V2仓库获取某个仓库的镜像ID呢?
如果使用Docker客户端1.10或更高版本推送镜像,则可以通过以下方式从注册表中获取镜像ID:
docker inspect registry.example.com/myimage:mytag | jq -r '.[0].Id'
GET /v2/<image>/manifests/<tag>
您的请求必须包含标题(header)
Accept: application/vnd.docker.distribution.manifest.v2+json
响应中,镜像ID将在Content-Docker-Digest
响应头中。
[2020-11更新的答案]
在使用Docker镜像时,需要处理许多sha。每个文件系统层都有一个唯一的sha,在该层被压缩并存储在注册表中时会更新。在表示图像配置的JSON对象上计算出一个sha,当您在本地查找图像ID时,就会看到它:
$ docker inspect busybox:latest --format '{{ .ID }}'
sha256:f0b02e9d092d905d0d87a8455a1ae3e9bb47b4aa3dc125125ca5cd10d6441c9f
注册表上有一个单平台清单的sha。这个清单包括指向图像配置和各个层的指针。还有一个多平台清单的sha,指向每个单独的平台。让我们深入了解一下。首先,这是我将用来使用匿名请求查询Docker Hub注册表的脚本:
$ cat manifest-v2.sh
#!/bin/sh
ref="${1:-library/ubuntu:latest}"
sha="${ref#*@}"
if [ "$sha" = "$ref" ]; then
sha=""
fi
wosha="${ref%%@*}"
repo="${wosha%:*}"
tag="${wosha##*:}"
if [ "$tag" = "$wosha" ]; then
tag="latest"
fi
api="application/vnd.docker.distribution.manifest.v2+json"
apil="application/vnd.docker.distribution.manifest.list.v2+json"
token=$(curl -s "https://auth.docker.io/token?service=registry.docker.io&scope=repository:${repo}:pull" \
| jq -r '.token')
curl -H "Accept: ${api}" -H "Accept: ${apil}" \
-H "Authorization: Bearer $token" \
-s "https://registry-1.docker.io/v2/${repo}/manifests/${sha:-$tag}" | jq .
$ ./manifest-v2.sh library/busybox:latest
{
"manifests": [
{
"digest": "sha256:c9249fdf56138f0d929e2080ae98ee9cb2946f71498fc1484288e6a935b5e5bc",
"mediaType": "application/vnd.docker.distribution.manifest.v2+json",
"platform": {
"architecture": "amd64",
"os": "linux"
},
"size": 527
},
{
"digest": "sha256:a7c572c26ca470b3148d6c1e48ad3db90708a2769fdf836aa44d74b83190496d",
"mediaType": "application/vnd.docker.distribution.manifest.v2+json",
"platform": {
"architecture": "arm",
"os": "linux",
"variant": "v5"
},
"size": 527
},
...
$ ./manifest-v2.sh library/busybox@sha256:c9249fdf56138f0d929e2080ae98ee9cb2946f71498fc1484288e6a935b5e5bc
{
"schemaVersion": 2,
"mediaType": "application/vnd.docker.distribution.manifest.v2+json",
"config": {
"mediaType": "application/vnd.docker.container.image.v1+json",
"size": 1493,
"digest": "sha256:f0b02e9d092d905d0d87a8455a1ae3e9bb47b4aa3dc125125ca5cd10d6441c9f"
},
"layers": [
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 764619,
"digest": "sha256:9758c28807f21c13d05c704821fdd56c0b9574912f9b916c65e1df3e6b8bc572"
}
]
}
这里我们有一个单层和配置对象,该配置对象上的sha与application/vnd.docker.container.image.v1+json
媒体类型匹配我们的镜像id sha256:f0b02e9d092d9...
。这在从注册表获取v2输出时更容易识别,这就是为什么清单脚本插入Accept
头的原因。
我要提醒的是,我不认为这是保证匹配的,你的经验可能有所不同,我不是律师等等。我可以预见到docker添加/删除字段将被不同版本的docker引擎忽略。因此,我会避免对这种行为进行任何硬依赖。
请注意,此sha与用于拉取图像的注册表上唯一标识图像的sha不同。对于这个,您需要清单sha,如果有清单列表,您应该使用它。当解析标签(使用curl的-I
参数)时,您可以只使用HEAD请求查看此sha:
$ cat manifest-v2-head.sh
#!/bin/sh
ref="${1:-library/ubuntu:latest}"
sha="${ref#*@}"
if [ "$sha" = "$ref" ]; then
sha=""
fi
wosha="${ref%%@*}"
repo="${wosha%:*}"
tag="${wosha##*:}"
if [ "$tag" = "$wosha" ]; then
tag="latest"
fi
# echo "Looking up repo $repo, ${sha:-$tag}"
# api="application/vnd.oci.image.index.v1+json"
# api="application/vnd.oci.image.manifest.v1+json"
api="application/vnd.docker.distribution.manifest.v2+json"
apil="application/vnd.docker.distribution.manifest.list.v2+json"
token=$(curl -s "https://auth.docker.io/token?service=registry.docker.io&scope=repository:${repo}:pull" \
| jq -r '.token')
curl -H "Accept: ${api}" -H "Accept: ${apil}" \
-H "Authorization: Bearer $token" \
-I -s "https://registry-1.docker.io/v2/${repo}/manifests/${sha:-$tag}"
$ ./manifest-v2-head.sh library/busybox:latest
HTTP/1.1 200 OK
Content-Length: 2080
Content-Type: application/vnd.docker.distribution.manifest.list.v2+json
Docker-Content-Digest: sha256:a9286defaba7b3a519d585ba0e37d0b2cbee74ebfe590960b0b1d6a5e97d1e1d
Docker-Distribution-Api-Version: registry/2.0
Etag: "sha256:a9286defaba7b3a519d585ba0e37d0b2cbee74ebfe590960b0b1d6a5e97d1e1d"
Date: Wed, 18 Nov 2020 14:38:59 GMT
Strict-Transport-Security: max-age=31536000
RateLimit-Limit: 250;w=21600
RateLimit-Remaining: 250;w=21600
docker pull busybox@sha:a9286d...
命令。regctl
命令处理其他注册表的身份验证和API调用。$ regctl image manifest busybox
{
"schemaVersion": 2,
"mediaType": "application/vnd.docker.distribution.manifest.v2+json",
"config": {
"mediaType": "application/vnd.docker.container.image.v1+json",
"size": 1493,
"digest": "sha256:f0b02e9d092d905d0d87a8455a1ae3e9bb47b4aa3dc125125ca5cd10d6441c9f"
},
"layers": [
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 764619,
"digest": "sha256:9758c28807f21c13d05c704821fdd56c0b9574912f9b916c65e1df3e6b8bc572"
}
]
}
$ regctl image digest busybox --list
sha256:a9286defaba7b3a519d585ba0e37d0b2cbee74ebfe590960b0b1d6a5e97d1e1d
$ regctl image digest busybox
sha256:c9249fdf56138f0d929e2080ae98ee9cb2946f71498fc1484288e6a935b5e5bc
原始回答:
镜像ID本身不存储在任何可访问的注册表API位置,以下是使用本地注册表的示例:
bash$ docker run -d -p 5000:5000 --restart=always --name registry registry:2
Unable to find image 'registry:2' locally
2: Pulling from library/registry
...
bash$ docker tag busybox localhost:5000/busybox
bash$ docker push localhost:5000/busybox
The push refers to a repository [localhost:5000/busybox]
5f70bf18a086: Pushed
...
bash$ curl http://localhost:5000/v2/busybox/tags/list
{"name":"busybox","tags":["latest"]}
bash$ curl http://localhost:5000/v2/busybox/manifests/latest
{
"schemaVersion": 1,
"name": "busybox",
"tag": "latest",
"architecture": "amd64",
"fsLayers": [
{
"blobSum": "sha256:a3ed95caeb02ffe68cdd9fd84406680ae93d633cb16422d00e8a7c22955b46d4"
},
{
"blobSum": "sha256:385e281300cc6d88bdd155e0931fbdfbb1801c2b0265340a40481ee2b733ae66"
}
],
"history": [
{
"v1Compatibility": "{\"architecture\":\"amd64\",\"config\":{\"Hostname\":\"156e10b83429\",\"Domainname\":\"\",\"User\":\"\",\"AttachStdin\":false,\"AttachStdout\":false,\"AttachStderr\":false,\"Tty\":false,\"OpenStdin\":false,\"StdinOnce\":false,\"Env\":null,\"Cmd\":[\"sh\"],\"Image\":\"56ed16bd6310cca65920c653a9bb22de6b235990dcaa1742ff839867aed730e5\",\"Volumes\":null,\"WorkingDir\":\"\",\"Entrypoint\":null,\"OnBuild\":null,\"Labels\":{}},\"container\":\"5f8098ec29947b5bea80483cd3275008911ce87438fed628e34ec0c522665510\",\"container_config\":{\"Hostname\":\"156e10b83429\",\"Domainname\":\"\",\"User\":\"\",\"AttachStdin\":false,\"AttachStdout\":false,\"AttachStderr\":false,\"Tty\":false,\"OpenStdin\":false,\"StdinOnce\":false,\"Env\":null,\"Cmd\":[\"/bin/sh\",\"-c\",\"#(nop) CMD [\\\"sh\\\"]\"],\"Image\":\"56ed16bd6310cca65920c653a9bb22de6b235990dcaa1742ff839867aed730e5\",\"Volumes\":null,\"WorkingDir\":\"\",\"Entrypoint\":null,\"OnBuild\":null,\"Labels\":{}},\"created\":\"2016-03-18T18:22:48.810791943Z\",\"docker_version\":\"1.9.1\",\"id\":\"437595becdebaaaf3a4fc3db02c59a980f955dee825c153308c670610bb694e1\",\"os\":\"linux\",\"parent\":\"920777304d1d5e337bc59877253e946f224df5aae64c72538672eb74637b3c9e\"}"
},
{
"v1Compatibility": "{\"id\":\"920777304d1d5e337bc59877253e946f224df5aae64c72538672eb74637b3c9e\",\"created\":\"2016-03-18T18:22:48.262403239Z\",\"container_config\":{\"Cmd\":[\"/bin/sh -c #(nop) ADD file:47ca6e777c36a4cfffe3f918b64a445c8f32300deeb9dfa5cc47261bd7b75d21 in /\"]}}"
}
],
"signatures": [
{
"header": {
"jwk": {
"crv": "P-256",
"kid": "FIFX:SJRD:AQHW:MCFX:M6WC:LXI2:3VO2:4LFW:UHDZ:QUN7:OLX4:6WGD",
"kty": "EC",
"x": "Xm8wJTzw3nb--rGoD3dxjKffikj7Snb9dHW-qGbqSAM",
"y": "GnATS--7lVcA_-jQGuDKTtjhmnGgvBrx8rLdlPOJV3U"
},
"alg": "ES256"
},
"signature": "f8NVzOF6ujm_0COedniGCGL_q3KsTfKFM9T8ZZDf2MSIMJ3TYoR_s795NqdEy8yWaoLuT2LoI0BCEsuOTZUhCw",
"protected": "eyJmb3JtYXRMZW5ndGgiOjE5MTQsImZvcm1hdFRhaWwiOiJDbjAiLCJ0aW1lIjoiMjAxNi0wNi0xMVQwMToxMzoyMVoifQ"
}
]
bash$ curl -I http://localhost:5000/v2/busybox/manifests/latest
HTTP/1.1 200 OK
Content-Length: 2561
Content-Type: application/vnd.docker.distribution.manifest.v1+prettyjws
Docker-Content-Digest: sha256:e45f25b1760f616e65f106b424f4ef29185fbd80822255d79dabc73b8eb715ad
Docker-Distribution-Api-Version: registry/2.0
Etag: "sha256:e45f25b1760f616e65f106b424f4ef29185fbd80822255d79dabc73b8eb715ad"
X-Content-Type-Options: nosniff
Date: Sat, 11 Jun 2016 01:21:26 GMT
bash$ docker inspect busybox:latest
[
{
"Id": "sha256:47bcc53f74dc94b1920f0b34f6036096526296767650f223433fe65c35f149eb",
"RepoTags": [
"busybox:latest",
"localhost:5000/busybox:latest"
],
...
从this image spec可以看出,图像id是可重现的哈希值,并且我在不同系统中看到相同的图像id值。
ImageID 每个图像的ID由其配置JSON的SHA256哈希给出。它表示为256位的十六进制编码,例如, sha256:a9561eb1b190625c9adb5a9513e72c4dedafc1cb2d4c5236c9a6957ec7dfd5a9。 由于被哈希的配置JSON引用了图像中每个层的哈希,因此这种ImageID的表述使图像具有内容寻址能力。
因此,如果您可以从API调用中重现配置JSON,则可能能够自己生成图像ID。
通过查询注册表(2.3.0+),您可以通过以下命令获取镜像ID:
curl -H 'Accept: application/vnd.docker.distribution.manifest.v2+json' http://$server/v2/$repo/manifests/$tag

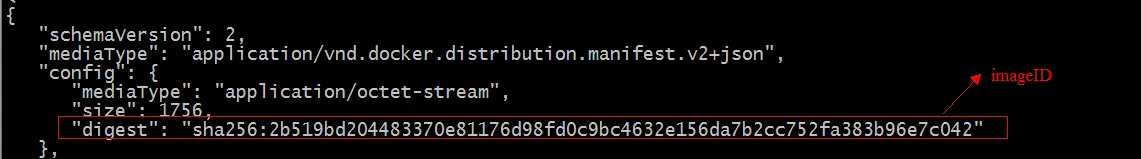

响应中的config.digest
字段就是您要找的imageID!
参考: https://duyanghao.github.io/docker-registry-pull-manifest-v2/
$server
、$repo
和$tag
的值即可。 - drs
