CMake“ld.exe：无法打开链接器脚本文件”

Question

我使用STMCubeMX生成了一个项目，并想把这个项目导入到Clion中。

下面是CmakeList.txt文件：

project(ClionTest)
cmake_minimum_required(VERSION 3.8)

add_definitions(-DSTM32F4xx)

file(GLOB_RECURSE USER_SOURCES "Src/*.c")
file(GLOB_RECURSE HAL_SOURCES "Drivers/STM32F4xx_HAL_Driver/Src/*.c")

add_library(CMSIS
        startup/startup_stm32f407xx.s)

include_directories(Drivers/CMSIS/Device)
include_directories(Drivers/CMSIS/Device/ST/STM32F4xx/Include)
include_directories(Drivers/CMSIS/Include)
include_directories(Drivers/STM32F4xx_HAL_Driver)
include_directories(Drivers/STM32F4xx_HAL_Driver/Inc)
include_directories(Inc)
include_directories(Middlewares/Third_Party/LwIP/src/include)

add_executable(${PROJECT_NAME}.elf ${USER_SOURCES} ${HAL_SOURCES} ${LINKER_SCRIPT})

target_link_libraries(${PROJECT_NAME}.elf CMSIS)

set(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} -Wl,-Map=${PROJECT_SOURCE_DIR}/build/${PROJECT_NAME}.map")
set(HEX_FILE ${PROJECT_SOURCE_DIR}/build/${PROJECT_NAME}.hex)
set(BIN_FILE ${PROJECT_SOURCE_DIR}/build/${PROJECT_NAME}.bin)
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
        COMMAND ${CMAKE_OBJCOPY} -Oihex $<TARGET_FILE:${PROJECT_NAME}.elf> ${HEX_FILE}
        COMMAND ${CMAKE_OBJCOPY} -Obinary $<TARGET_FILE:${PROJECT_NAME}.elf> ${BIN_FILE}
        COMMENT "Building ${HEX_FILE} \nBuilding ${BIN_FILE}")

以下是一个 STM32F4xx.cmake 文件:

INCLUDE(CMakeForceCompiler)

SET(CMAKE_SYSTEM_NAME Generic)
SET(CMAKE_SYSTEM_VERSION 1)

# specify the cross compiler
#CMAKE_FORCE_C_COMPILER(C:/Program Files (x86)/GNU Tools ARM Embedded/6 2017-q2-update/bin/arm-none-eabi-gcc.exe GNU)
#CMAKE_FORCE_CXX_COMPILER(D:/Lib/arm/bin/arm-none-eabi-g++.exe GNU)

SET(CMAKE_C_COMPILER "C:/Program Files (x86)/GNU Tools ARM Embedded/6 2017-q2-update/bin/arm-none-eabi-gcc.exe")
SET(CMAKE_CXX_COMPILER "C:/Program Files (x86)/GNU Tools ARM Embedded/6 2017-q2-update/bin/arm-none-eabi-g++.exe")

SET(LINKER_SCRIPT ${PROJECT_SOURCE_DIR}/STM32F407VETx_FLASH.ld)
#Uncomment for software floating point
#SET(COMMON_FLAGS "-mcpu=cortex-m4 -mthumb -mthumb-interwork -mfloat-abi=soft -ffunction-sections -fdata-sections -g -fno-common -fmessage-length=0")
SET(COMMON_FLAGS "-mcpu=cortex-m4 -mthumb -mthumb-interwork -mfloat-abi=hard -mfpu=fpv4-sp-d16 -ffunction-sections -fdata-sections -g -fno-common -fmessage-length=0")
SET(CMAKE_CXX_FLAGS_INIT "${COMMON_FLAGS} -std=c++11")
SET(CMAKE_C_FLAGS_INIT "${COMMON_FLAGS} -std=gnu99")
SET(CMAKE_EXE_LINKER_FLAGS_INIT "-Wl,-gc-sections,-M=binary.map -T ${LINKER_SCRIPT}")

我设置了LINKER_SCRIPT ${PROJECT_SOURCE_DIR}/STM32F407VETx_FLASH.ld

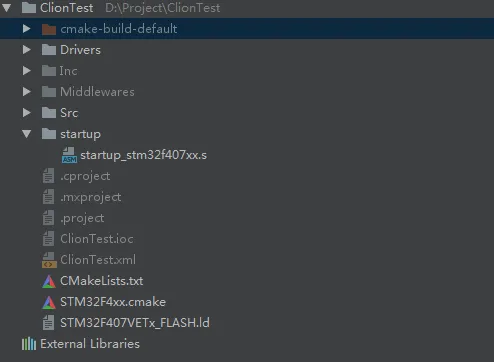

文件结构

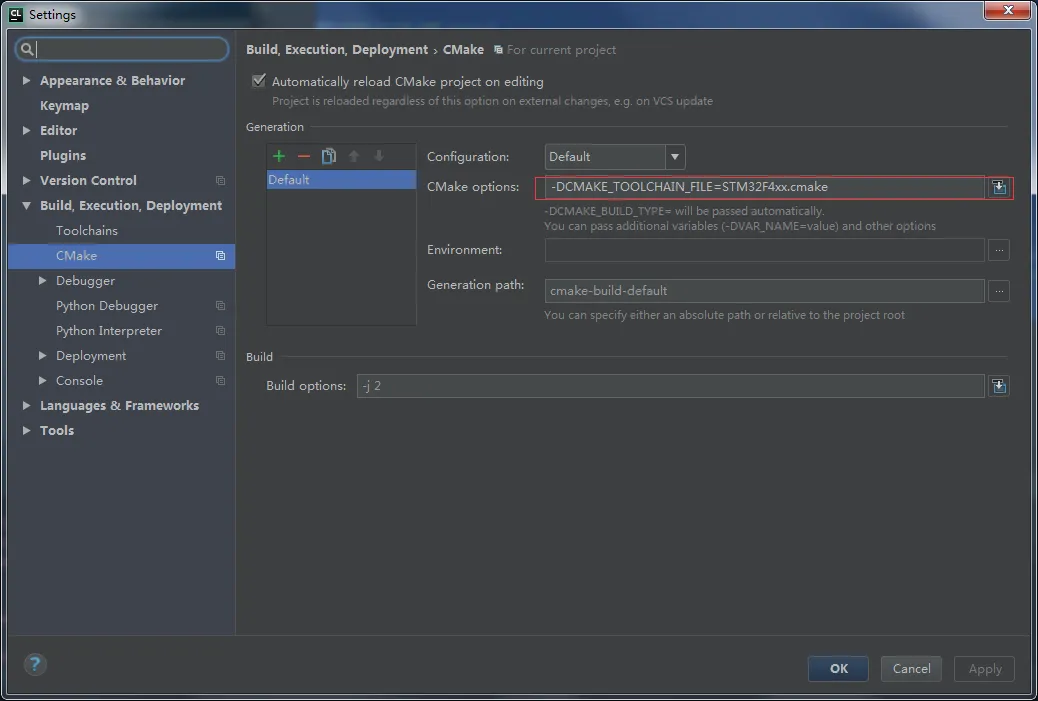

Cmake选项如下：

Cmake选项

当我重新加载这个项目时，它并不能很好地进行。

c:/progra~2/gnutoo~1/62017-~1/bin/../lib/gcc/arm-none-eabi/6.3.1/../../../../arm-none-eabi/bin/ld.exe: cannot open linker script file
D:/Project/ClionTest/cmake-build-default/CMakeFiles/CMakeTmp/STM32F407VETx_FLASH.ld:
  Invalid argument

  collect2.exe: error: ld returned 1 exit status

  CMakeFiles\cmTC_bf7b4.dir\build.make:96: recipe for target 'cmTC_bf7b4' failed

  mingw32-make.exe[1]: *** [cmTC_bf7b4] Error 1

  mingw32-make.exe[1]: Leaving directory
  'D:/Project/ClionTest/cmake-build-default/CMakeFiles/CMakeTmp'

  Makefile:125: recipe for target 'cmTC_bf7b4/fast' failed

  mingw32-make.exe: *** [cmTC_bf7b4/fast] Error 2

似乎 ld.exe 的路径不正确，我应该如何设置它的路径？为什么搜索到的 STM32F407VETx_FLASH.ld 的路径不是我设置的路径？

- AloveZ

---

你遇到了同样的问题吗？你解决了吗？ - polwel

Answer 1

我正在使用Linux，但是我遇到了类似的问题，无法打开链接脚本。

无法打开链接器脚本文件D：/Project/ClionTest/cmake-build-default/CMakeFiles/CMakeTmp/STM32F407VETx_FLASH.ld

在查看target_link_option文档一段时间后（它执行与直接设置变量大致相同的操作），我注意到了SHELL：指令，该指令说明如下：

选项集被去重以避免重复。虽然对于单个选项有益，但去重步骤可能会破坏选项组。例如，-D A -D B变成-D A B。可以使用类似shell的引号和SHELL：前缀来指定一组选项。 SHELL：前缀被删除，选项字符串的其余部分使用separate_arguments（）UNIX_COMMAND模式解析。

通过将其添加到我的命令中，我成功使编译正常工作。结果如下：

set(LINKER_SCRIPT "${CMAKE_SOURCE_DIR}/STM32F303CCTX_FLASH.ld")
set(LINKER_FLAGS "SHELL:-T${LINKER_SCRIPT} -Wl,--gc-sections --specs=nano.specs --specs=nosys.specs")
target_link_options(${PROJECT_BINARY} PRIVATE ${LINKER_FLAGS})

- Érico Rolim

Answer 2

将以下代码从： SET(CMAKE_EXE_LINKER_FLAGS_INIT "-Wl,-gc-sections,-M=binary.map -T ${LINKER_SCRIPT}") 改为： SET(CMAKE_EXE_LINKER_FLAGS "-Wl,-gc-sections,-M=binary.map -T${LINKER_SCRIPT}")

- Marjon

---

你的回答如果附带解释会更有帮助。 - O.O.Balance

这是因为CMAKE_EXE_LINKER_FLAGS包含的标志比存储在CMAKE_EXE_LINKER_FLAGS_INIT中的默认标志多吗？ - Jerry Jeremiah

将“T”和链接器文件名之间的空格去掉。 - Marjon
