有人知道在 MS Excel 中是否可以显示带有 SI 前缀的数字吗?
我想要得到:
... 1n、1µ、1m、1、1k、1M、1G ...
而不是科学计数法:
... 1E-09、1E-06、1E-03、1、1E+03、1E+06、1E+09 ...
也许还可以添加单位,如 V(伏特)、F(法拉)等。
最好是单元格仍然包含数字,而不是字符串,这样可以轻松地更改为另一种格式(返回科学计数法或其他格式)。
有人知道在 MS Excel 中是否可以显示带有 SI 前缀的数字吗?
我想要得到:
... 1n、1µ、1m、1、1k、1M、1G ...
而不是科学计数法:
... 1E-09、1E-06、1E-03、1、1E+03、1E+06、1E+09 ...
也许还可以添加单位,如 V(伏特)、F(法拉)等。
最好是单元格仍然包含数字,而不是字符串,这样可以轻松地更改为另一种格式(返回科学计数法或其他格式)。
=ROUND(
E10 / (1000 ^ INT(LOG(ABS(E10),1000)) )
,0
) & CHOOSE(
INT(LOG(ABS(E10),1000)) + 6
,"f","p","n","µ","m","","k","M","G","T","P"
)
[>=1000000] #,##0.0,," MΩ";[<1000000] #,##0.0," kΩ";General
400
渲染出 0.4 kΩ
(可能不是您想要的)4000
渲染出 4.0 kΩ
40e3
渲染出 40.0 kΩ
40e6
渲染出 40.0 MΩ
但是,您可能可以添加更多条款以覆盖其他范围。 算了,您不能。
1 n 1E-09
1 µ 1E-06
1 m 1E-03
1 1
1 k 1E+03
1 M 1E+06
1 G 1E+09
"1 m"
- 这将掩盖数字,因此如果您有0.002,则需要将其设置为"2 m"
- 如果您将其更改为0.004,则仍将显示2 m
作为结果。这显然不是理想的。有可能使用转换表和“match”和“index”函数,尽管这样做比较繁琐。
从这样的转换表中(两列):
1.E+15 P
1.E+12 T
1.E+09 G
1.E+06 M
1.E+03 k
1.E+00
1.E-03 m
1.E-06 µ
1.E-09 n
1.E-12 p
1.E-15 f
然后您可以执行以下翻译
3.68437E+11 --> 368.44 G
H1
=G1/INDEX(A:A,MATCH(G1,$A:$A,-1)+1)
I1
=INDEX($B:$B,MATCH(G1,$A:$A,-1)+1)
然后适当的数字将显示在H列,前缀/后缀将显示在I列。
这仍然很繁琐,只应用于最终输出,因为从修改后的数字进行的计算必须包括反向翻译。
我不知道有什么方法可以将数字格式化(您可以将格式化的数字作为任何其他数值进行后续计算),但是如果只是使用SI前缀呈现数字,这里是我使用的公式。 它采用指定单元格中的公式(通常在其旁边,在本例中为E28),将数字进行比例缩放,四舍五入到指定的有效数字位数(在本例中为3),附加适当的SI前缀,然后附加指定的单位(在本例中为“F”表示法拉第)。 这里的优点是公式是自包含的,不需要任何外部参考表。 该公式适用于10^-15到10^12的飞托(femto)至特拉(Tera),但可以轻松扩展以获得更多前缀。
=CONCAT(
ROUND(
IF(E28>1E12, E28/1E12,
IF(E28>1E9, E28/1E9,
IF(E28>1E6, E28/1E6,
IF(E28>1E3, E28/1E3,
IF(E28>1, E28,
IF(E28>1E-3, E28*1E3,
IF(E28>1E-6, E28*1E6,
IF(E28>1E-9, E28*1E9,
IF(E28>1E-12, E28*1E12,
E28*1E15
) ) ) ) ) ) ) ) ),
3 +N("This is the number of significant digits to round to")
-(1+INT(LOG10(ABS(
IF(E28>1E12, E28/1E12,
IF(E28>1E9, E28/1E9,
IF(E28>1E6, E28/1E6,
IF(E28>1E3, E28/1E3,
IF(E28>1, E28,
IF(E28>1E-3, E28*1E3,
IF(E28>1E-6, E28*1E6,
IF(E28>1E-9, E28*1E9,
IF(E28>1E-12, E28*1E12,
E28*1E15
) ) ) ) ) ) ) ) ) ))))
),
IF(E28>1E12, "T",
IF(E28>1E9, "G",
IF(E28>1E6, "M",
IF(E28>1E3, "k",
IF(E28>1, "",
IF(E28>1E-3, "m",
IF(E28>1E-6, "µ",
IF(E28>1E-9, "n",
IF(E28>1E-12, "p",
"f"
) ) ) ) ) ) ) ) ),
"F" +N("This is the unit symbol that will be appended to the end")
)
如果你想要将数字保留到固定的小数位数而不是有效数字,公式会更简单一些:
=CONCAT(
ROUND(
IF(E28>1E12, E28/1E12,
IF(E28>1E9, E28/1E9,
IF(E28>1E6, E28/1E6,
IF(E28>1E3, E28/1E3,
IF(E28>1, E28,
IF(E28>1E-3, E28*1E3,
IF(E28>1E-6, E28*1E6,
IF(E28>1E-9, E28*1E9,
IF(E28>1E-12, E28*1E12,
E28*1E15
) ) ) ) ) ) ) ) ),
3 +N("This is the number of decimal digits to round to")
),
IF(E28>1E12, "T",
IF(E28>1E9, "G",
IF(E28>1E6, "M",
IF(E28>1E3, "k",
IF(E28>1, "",
IF(E28>1E-3, "m",
IF(E28>1E-6, "µ",
IF(E28>1E-9, "n",
IF(E28>1E-12, "p",
"f"
) ) ) ) ) ) ) ) ),
"F" +N("This is the unit symbol that will be appended to the end")
)
这是一个针对Google Sheets的有限答案,使用实际数字格式而不是输出文本的表达式。
从endolith的答案中分离出来,我最终选择了这个:
[>=1E6] #,##0.0,,"M";[>1E3] #,##0.0,"K";0.#####################
它适用于1到<1E16的数字,但无法扩展到超过M的单位。不适用于负数或小数。它受Google Sheets能够解析的条件部分数量的限制。
文档:https://developers.google.com/sheets/api/guides/formats#number_format_patterns

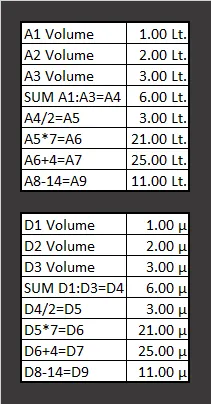

只需选择您想要包含给定符号的单元格或单元格范围。右键单击该单元格,然后选择“格式单元格”。在左侧选择“数字”格式,在右侧输入小数位等内容。现在沿着左侧的格式选项列表向下滚动,并选择“自定义”。(重要提示:不要在右侧选择任何自定义格式选项。)左键单击“类型:”下方的框,位于自定义格式选项列表上方。(此框显示您当前选择的格式。{如果您选择默认数字格式,则为0.00}您希望保留此格式并添加其他格式。)单击0.00右侧并键入以下内容:“μ”单击“确定”,然后可以像平常一样输入数据。格式化单元格不会影响您输入的值。您可以像平常一样执行所有功能。我附上了一张图片,其中我使用相同的说明将字母和希腊MU符号应用于值,并执行了一些基本计算,而不会妨碍Excel的功能。 Excel中的特殊符号
' Hans Wolfgang Schulze 20190921, cause I always need this and need to write it again cause I forgot where I saved it.
' Paste this into Excel's Macro Editor (F11) and use from any cell.
' Copyleft 2019. Please include original author's name in all derivative works.
'
' Note that the conversions in this code is assuming normal Base 10, and not Binary 1024. Lots of code has to change.
' Currently recognizes numbers like "-123123.123G" or "123E15" with or without actual units.
' Special case of Excel's "-" nothing equals 0.
' Assumes, if exists, that the rightmost character is the SI exponent designation - See expS below.
' Usage: =DSci("45e9k") gives "4.5E12" as an answer.
Const expS = "-qryzafpnum KMGTPEZYRQ" ' https://en.wikipedia.org/wiki/Metric_prefix
Function DSci(inputS As String) As Double
Dim which As Integer
which = InStr(expS, Right(inputS, 1))
whichUnitary = InStr(expS, " ") ' offset into expS for " " unity value
If which = 0 Then
which = InStr("----F-Nµ- k-gt-e", Right(inputS, 1)) ' try alt case and form that aren't obscure ie k=K or m!=M
End If
If which > 0 Then ' has a terminating exponential character. 1 is not found.
If which = 1 Then ' "-"
DSci = 0 ' excel nothing value (0)
Else ' convert only the left side of input
DSci = CDbl(Left(inputS, Len(inputS) - 1)) * 10# ^ ((which - whichUnitary) * 3#) ' fix for Binary K's
End If
Else
DSci = CDbl(inputS) ' convert whole string instead ' special case devide by 1.024 for each 1000 for Binary K's
End If
End Function
' Formats to SI convention 10 ^ (-30 ... +30) and recent suggested expansions
' Usage =Sci(5.531e9, "B") gives string of "5.531GB"
' Significant digits are suggested as 4, can be any positive number.
Function Sci(value As Double, optionalUnit As String, Optional significant As Integer = 4) As String
Dim mant As Double, exp As Double, rank As Integer
rankUnitary = InStr(expS, " ") ' offset into expS for " " unity value
If value = 0 Then exp = 0 Else exp = Log(value) / Log(10#) ' nDigits
mant = value / (10# ^ exp) '
While mant >= 999.9999999999 ' don't want 2000K, rather 2M. Change to 1023.9999999999# for Binary K's
exp = exp + 3#
mant = mant / 1000# ' change to 1024# for binary K's etc.
Wend
rank = Int((exp + 0.0000000000001) / 3#) ' should be >1E-300 or so? Why not? 3 != 3#? More changes for Binary K's ?
mant = mant * 10# ^ (-rank * 3# + exp) ' adjust mantussa after de-ranking. Change?? for Binary K's
If Abs(rank) >= rankUnitary Then ' outside of +/- yY bounds
expChar = "?" ' what do you call it then? Not defined.
Else
expChar = Mid(expS, rank + rankUnitary, 1) ' add SI
End If
Sci = Left(mant, Abs(significant)) ' don't allow negative numbers, pretend they are positive lengths
If Right(Sci, 1) = "." Then Sci = Left(Sci, Len(Sci) - 1) ' lop off right DP
Sci = Sci & " " & expChar & optionalUnit
End Function
