深度学习模型的结构中，输入层消失了。

Question

我使用以下代码使用VGG16创建CNN模型，但是在创建模型后，模型的输入层从结构中消失了（请参见图像）。 为什么输入层会从结构中消失？

vgg16_model = keras.applications.vgg16.VGG16()
model = Sequential([])
 for layer in vgg16_model.layers[:-1]:
   model.add(layer)
   model.add(Dropout(0.5))
   model.add(Dense(2, activation='softmax', name = 'prediction'))

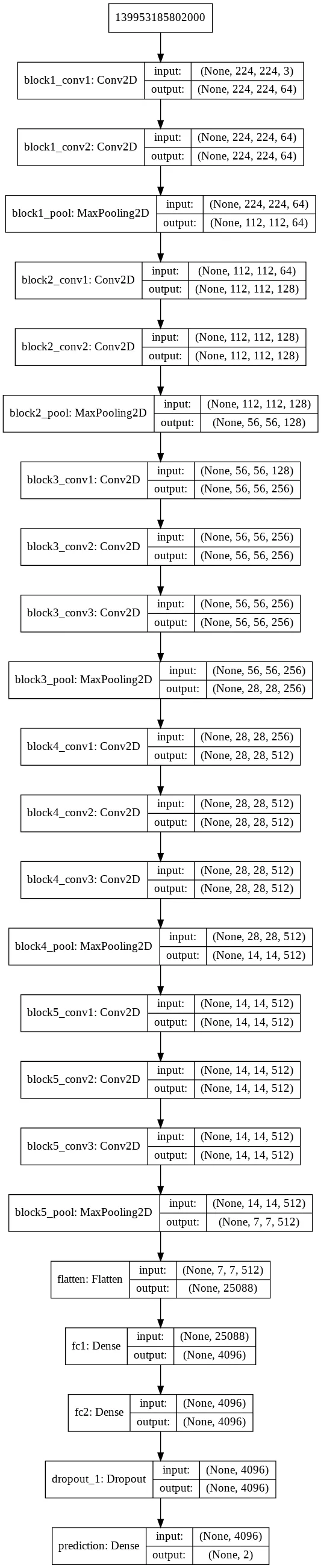

模型结构

- Noran

Answer 1

这只是在使用Sequential API时Keras模型表示的一种假象，它实际上没有任何实际效果：Input层在隐式存在，但它不被认为是一个真正的层，也不会出现在model.summary()中。如果使用Functional API，则会显示出来。 考虑以下两个相同的模型，使用了两种不同的API编写： Sequential API

from keras.models import Sequential
from keras.layers import Dense      # notice that we don't import Input here...

model_seq = Sequential([
    Dense(64, input_shape=(784,),activation='relu'),
    Dense(64, activation='relu'),
    Dense(10, activation='softmax')
])

model_seq.summary()

# result:

_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
dense_1 (Dense)              (None, 64)                50240
_________________________________________________________________
dense_2 (Dense)              (None, 64)                4160
_________________________________________________________________
dense_3 (Dense)              (None, 10)                650
=================================================================
Total params: 55,050
Trainable params: 55,050
Non-trainable params: 0
_________________________________________________________________

功能性 API

from keras.models import Model
from keras.layers import Input, Dense  # explicitly import Input layer

inputs = Input(shape=(784,))
x = Dense(64, activation='relu')(inputs)
x = Dense(64, activation='relu')(x)
predictions = Dense(10, activation='softmax')(x)

model_func = Model(inputs=inputs, outputs=predictions)

model_func.summary()

    # result:

Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         (None, 784)               0
_________________________________________________________________
dense_1 (Dense)              (None, 64)                50240
_________________________________________________________________
dense_2 (Dense)              (None, 64)                4160
_________________________________________________________________
dense_3 (Dense)              (None, 10)                650
=================================================================
Total params: 55,050
Trainable params: 55,050
Non-trainable params: 0
_________________________________________________________________

这两个模型是相同的；使用顺序API时，Input层在model.summary()中没有明确显示，并不意味着模型的功能有任何问题。编辑：正如Daniel Möller在下面的评论中正确指出的那样，它甚至不是一个真正的层，除了定义输入形状之外什么也不做（请注意其在model_func.summary中的0个训练参数）。 换句话说，不用担心... 这个相关的主题也可能很有用：Keras Sequential model input layer

- desertnaut

---

此外，输入层并不是真正的一层。它除了定义输入的形状外什么也不做。一个层需要对数据执行操作，而输入只是数据。 - Daniel Möller

@DanielMöller 确实 - 感谢您的有用建议（已添加到答案并标注出处） - desertnaut

Answer 2

您需要显式添加一个InputLayer...。 示例代码:

vgg16_model = keras.applications.vgg16.VGG16()
model = Sequential()
inp = InputLayer(input_shape=(224, 224, 3))
model.add(inp)

for layer in vgg16_model.layers[:-1]:
    model.add(layer)

for layer in model.layers:
    layer.trainable = False

model.add(Dense(2, activation='softmax'))
model.summary()

输出：

Model: "sequential_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         (None, 224, 224, 3)       0
_________________________________________________________________
block1_conv1 (Conv2D)        (None, 224, 224, 64)      1792
_________________________________________________________________
block1_conv2 (Conv2D)        (None, 224, 224, 64)      36928
_________________________________________________________________
block1_pool (MaxPooling2D)   (None, 112, 112, 64)      0
_________________________________________________________________
block2_conv1 (Conv2D)        (None, 112, 112, 128)     73856
_________________________________________________________________
block2_conv2 (Conv2D)        (None, 112, 112, 128)     147584
_________________________________________________________________
block2_pool (MaxPooling2D)   (None, 56, 56, 128)       0
_________________________________________________________________
block3_conv1 (Conv2D)        (None, 56, 56, 256)       295168
_________________________________________________________________
block3_conv2 (Conv2D)        (None, 56, 56, 256)       590080
_________________________________________________________________
block3_conv3 (Conv2D)        (None, 56, 56, 256)       590080
_________________________________________________________________
block3_pool (MaxPooling2D)   (None, 28, 28, 256)       0
_________________________________________________________________
block4_conv1 (Conv2D)        (None, 28, 28, 512)       1180160
_________________________________________________________________
block4_conv2 (Conv2D)        (None, 28, 28, 512)       2359808
_________________________________________________________________
block4_conv3 (Conv2D)        (None, 28, 28, 512)       2359808
_________________________________________________________________
block4_pool (MaxPooling2D)   (None, 14, 14, 512)       0
_________________________________________________________________
block5_conv1 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_conv2 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_conv3 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_pool (MaxPooling2D)   (None, 7, 7, 512)         0
_________________________________________________________________
flatten (Flatten)            (None, 25088)             0
_________________________________________________________________
fc1 (Dense)                  (None, 4096)              102764544
_________________________________________________________________
fc2 (Dense)                  (None, 4096)              16781312
_________________________________________________________________
dense_1 (Dense)              (None, 2)                 8194
=================================================================
Total params: 134,268,738
Trainable params: 8,194
Non-trainable params: 134,260,544

- Ajinkya Gholape
